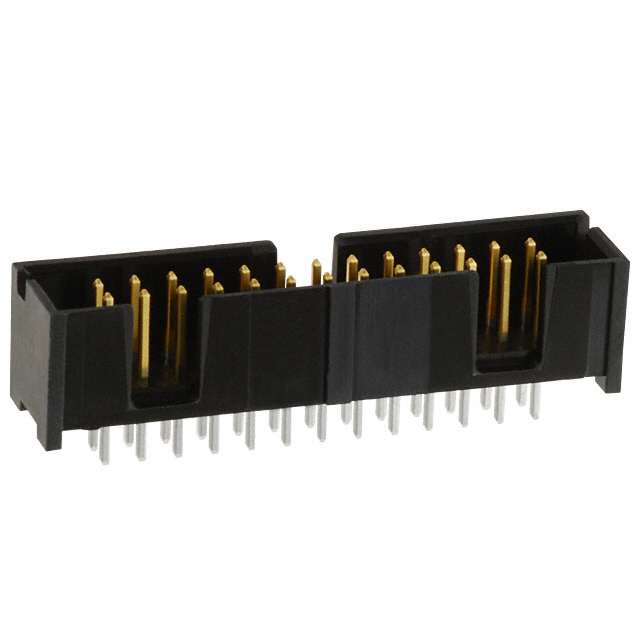

103309-6

AMP - TE CONNECTIVITY 103309-6 Wire-To-Board Connector, 2.54mm, 26Contacts, Header, AMP-LATCH Series, Through Hole, 2Rows

026 LOPRO HDR SP 30DP

Product Highlights

Connector Type = Pin Headers

Low Profile

Number of Positions = 26

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Vertical

得捷:
CONN HEADER VERT 26POS 2.54MM

艾睿:

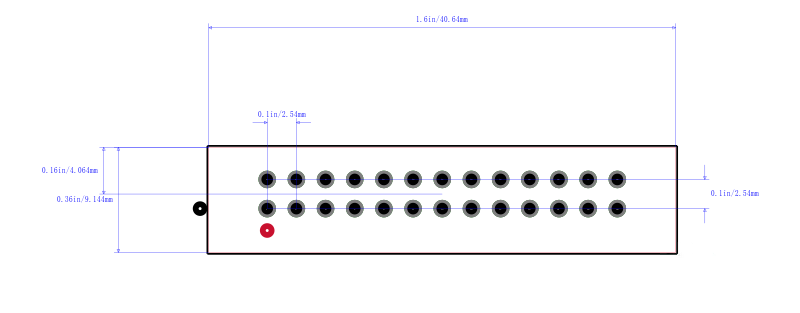

Make strong and binding connections on your circuit boards by adopting this shrouded 103309-6 connector from TE Connectivity. This HDR connector&s;s 26 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel|gold over nickel. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 40.64 mm long, 9.78 mm tall and 9.14 mm deep. 103309-6 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

Allied Electronics:
LO/PRO STD HDR, 026 LOPRO HDR SP 30DP

Jameco:
Connector Shrouded Header 26 Position 2.54mm Solder Straight Thru-Hole

安富利:
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Automotive Tube

Verical:
Conn Shrouded Header 4 Sides HDR 26 POS 2.54mm Solder ST Thru-Hole Automotive Tube

Newark:
# AMP - TE CONNECTIVITY  103309-6  Wire-To-Board Connector, 2.54 mm, 26 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows

MASTER:
HEADER ASSY, LOW PROFILE, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
026 LOPRO HDR SP 30DP

Electro Sonic:
026 LOPRO HDR SP 30DP
