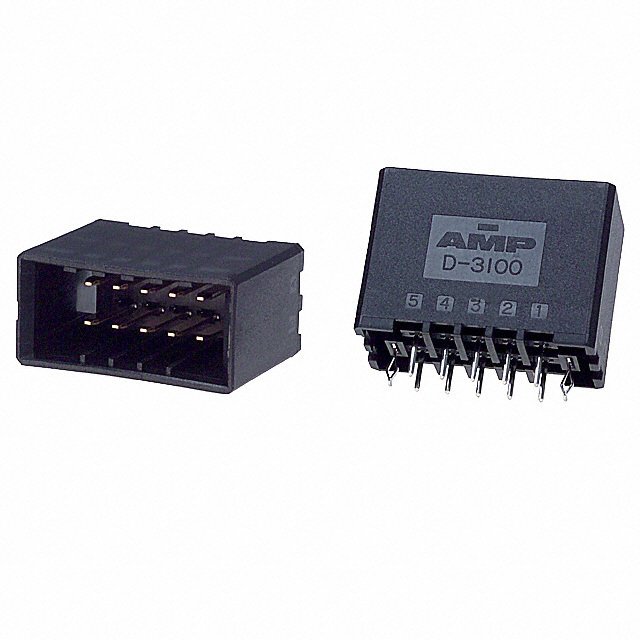

178325-2

AMP FROM TE CONNECTIVITY  178325-2  线至板连接器, Dynamic D-3100D系列, 10 触点, 针座, 3.81 mm, 通孔安装, 2 排

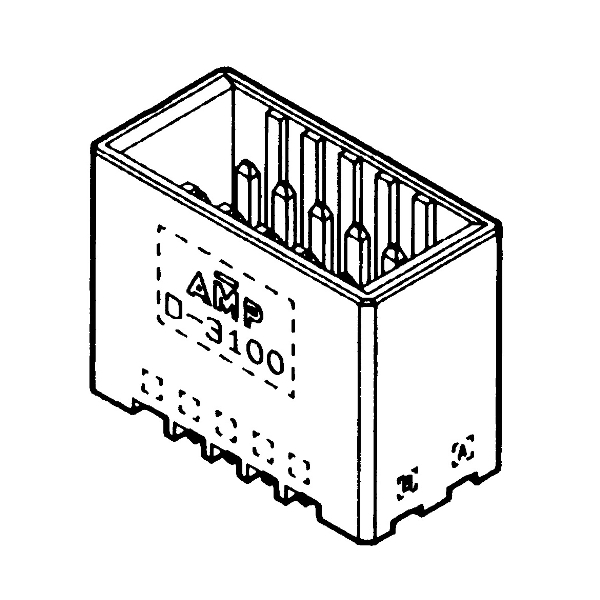

Dynamic D-3100 系列管座

Dynamic 系列的 D-3100 系列管座具有镀锡固定支脚，以提高稳定性。 D-3100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。

### 注

有关配接的 D-3100 系列外壳，请参见典型库存号 680-1571

得捷:
CONN HEADER VERT 10POS 3.81MM

立创商城:
3.81mm 2x5P 直插

欧时:
TE Connectivity PCB 针座 Dynamic 3000 系列 10路 3.81mm节距 直向 178325-2, 焊接端接, 通孔

贸泽:
集管和线壳 10-P POST HDR D-3100

e络盟:
线至板连接器, 3.81 mm, 10 触点, 针座, Dynamic D-3100D系列, 通孔安装, 2 排

艾睿:

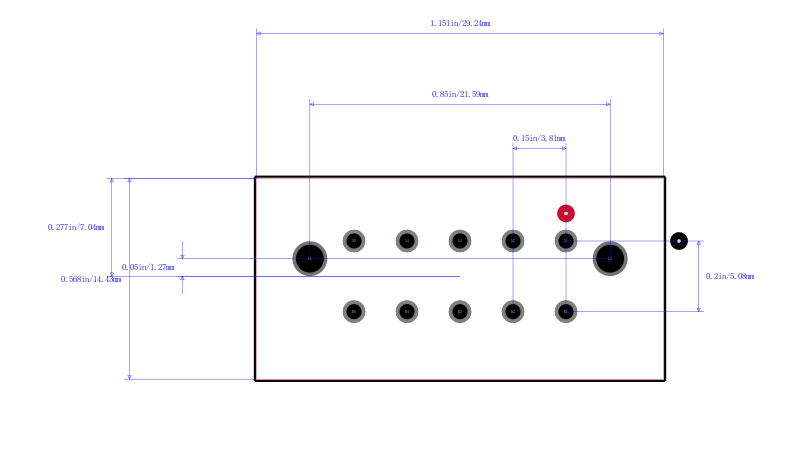

Use this 178325-2 power connector from TE Connectivity to connect a power supply to a circuit. This M connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 3.81 mm. It has a male type gender. It has a maximum voltage rating of 250 VAC. This connector has a single port. 178325-2 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 10 terminals use the solder termination method. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 29.24 mm long, 21.6 mm tall and 14.43 mm deep.

Allied Electronics:
Dynamic 3000 Series, 3.81mm Pitch 10 Way Straight PCB Header, Solder Termination

安富利:
Conn Power M 10 POS 3.81mm Solder ST Thru-Hole 10 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 10 POS 3.81mm Solder ST Thru-Hole 10 Terminal 1 Port Tube

Verical:
Conn Power M 10 POS 3.81mm Solder ST Thru-Hole 10 Terminal 1 Port Automotive Tube

Newark:
# AMP - TE CONNECTIVITY  178325-2  Wire-To-Board Connector, 3.81 mm, 10 Contacts, Header, Dynamic D-3100D Series, Through Hole, 2 Rows

MASTER:
Connector Header Through Hole 10 position 0.150" 3.81mm

Powell:
Dynamic Series Connectors

Online Components:
10-P POST HDR D-3100D VERT .38

Electro Sonic:
Connector Header Through Hole 10 position 0.150" 3.81mm

Win Source:
CONN HEADER VERT 10POS 3.81MM / Connector Header Through Hole 10 position 0.150" 3.81mm
