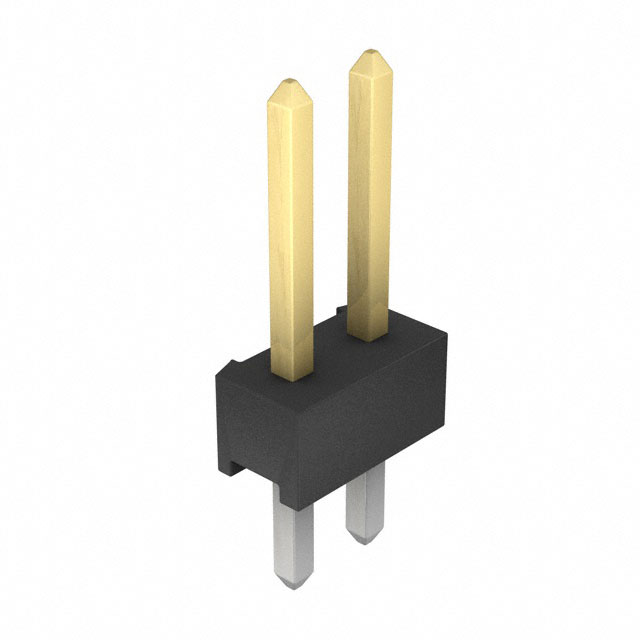

104351-1

104351-1图片1
104351-1图片2
104351-1图片3
104351-1图片4
104351-1图片5
104351-1图片6
104351-1图片7
104351-1概述

2 位置 2.54mm 排间距 双排 垂直 安装 插针 针座

02 MODII HDR DRST B/A W/HD

Product Highlights

Connector

Header Type = Standard

2 Positions

Mating Post Length = 5.84 mm

2.54 mm Centerline


得捷:
CONN HEADER VERT 2POS


贸泽:
集管和线壳 2P DRST HDR


艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded 104351-1 header connector from TE Connectivity. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. 104351-1 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. This product is 2.13 mm long, 8.12 mm tall and 4.87 mm deep.


安富利:
Conn Unshrouded Header HDR 2 POS Solder ST Thru-Hole Tube


富昌:
2 位置 2.54mm 排间距 双排 垂直 安装 插针 针座


Verical:
Conn Unshrouded Header HDR 2 POS Solder ST Thru-Hole Automotive Carton


MASTER:
HEADER ASSY, MOD II, BREAKAWAY, DBL ROW, .100X.100 CL ,VERT, .025 SQ POSTS, WITH RETENTION FEATURE


Powell:
.100 inch AMPMODU Headers


Online Components:
02 MODII HDR DRST B/A W/HD


Electro Sonic:
02 MODII HDR DRST B/A W/HD


104351-1中文资料参数规格
技术参数

触点数 2

极性 Male

触点电镀 Gold, Tin over Nickel, Tin Lead

绝缘电阻 5000 MΩ

排数 2

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 2

安装角度 180 °

额定电流Max 3A/触头

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 30 VAC

额定电压 30 VAC

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 2.13 mm

宽度 4.88 mm

高度 8.12 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -65℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

104351-1引脚图与封装图

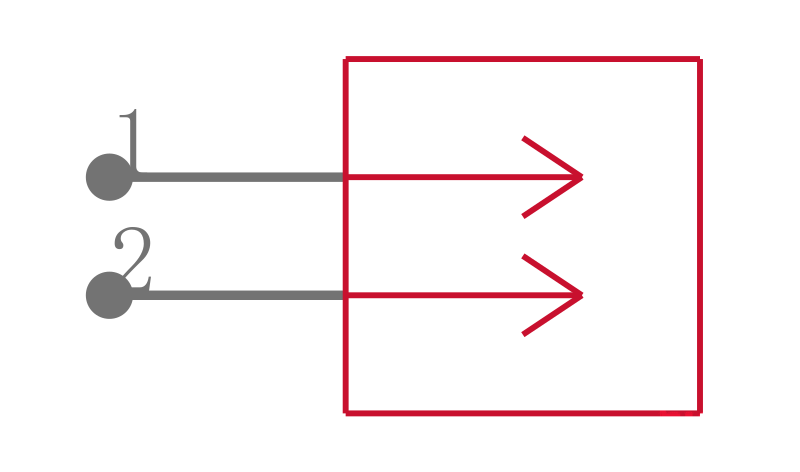

104351-1引脚图

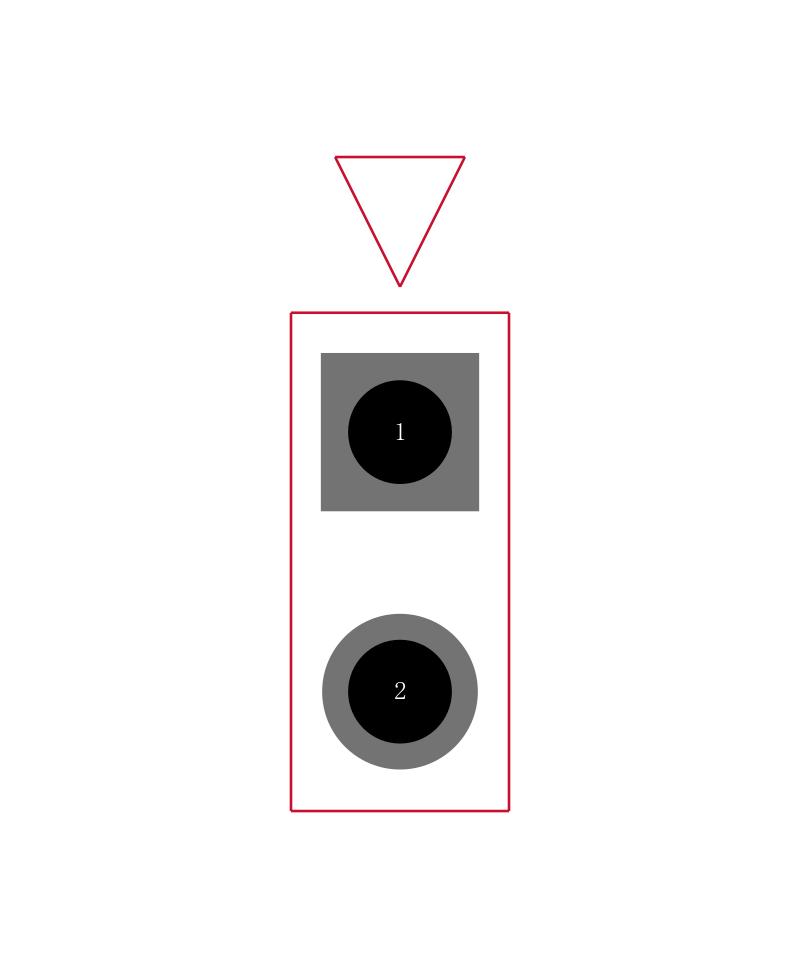

104351-1封装图

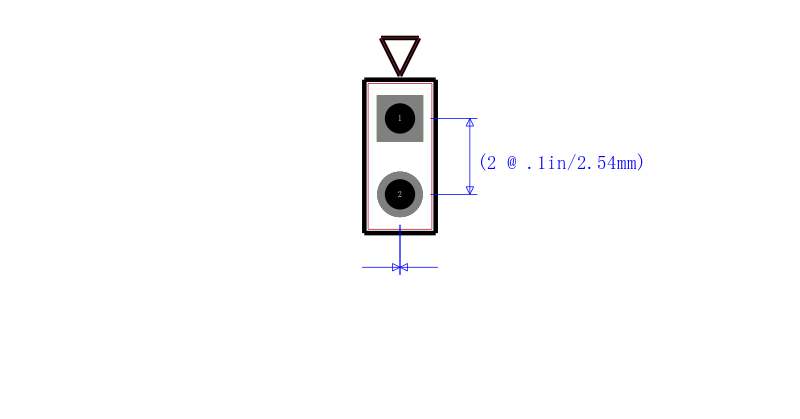

104351-1封装焊盘图
在线购买104351-1
型号: 104351-1
描述:2 位置 2.54mm 排间距 双排 垂直 安装 插针 针座
替代型号104351-1
型号/品牌 代替类型 替代型号对比

104351-1

TE Connectivity 泰科

当前型号

当前型号

69192-108HLF

法马通

类似代替

104351-1和69192-108HLF的区别

69192-110HLF

法马通

功能相似

104351-1和69192-110HLF的区别

69192-210HLF

法马通

功能相似

104351-1和69192-210HLF的区别
