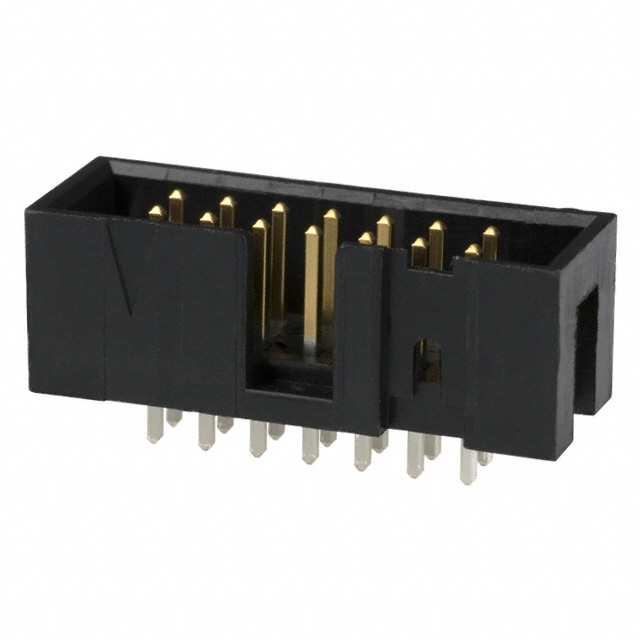

AMP-LATCH 14 位置 通孔 双排 直 插针 针座
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole
Product Highlights
Connector Type = Pin Header
Low Profile
Number of Positions = 14
2.54 x 2.54 mm Centerline, Matrix
PCB Mount Angle = Vertical
Search Keywords:
ribbon cable connector system, input/output, LATCH Universal Header,
得捷:
CONN HEADER VERT 14POS 2.54MM
富昌:
AMP-LATCH 14 位置 通孔 双排 直 插针 针座
Verical:
Conn Shrouded Header 4 Sides HDR 14 POS 2.54mm Solder ST Thru-Hole
Powell:
AMP-LATCH Low Profile Headers
Online Components:
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole
Electro Sonic:
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole
触点数 14
极性 Male
触点电镀 Tin, Tin over Nickel, Gold
额定电流 1A/触头
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 14
安装角度 180 °
额定电流Max 1A/触头
额定电压 250 VAC
安装方式 Through Hole
引脚间距 2.54 mm
长度 25.4 mm
宽度 9.14 mm
高度 9.22 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Superseded
包装方式 Tray
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
