1-5102162-0

Conn Ejector Header HDR 50POS 2.54mm Solder RA Thru-Hole Tray

A/L UNIV HDR 50P RA

Product Highlights

Connector Type = Universal Ejection Pin Headers

Standard Profile

Number of Positions = 50

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Right Angle

得捷:
CONN HEADER R/A 50POS 2.54MM

艾睿:

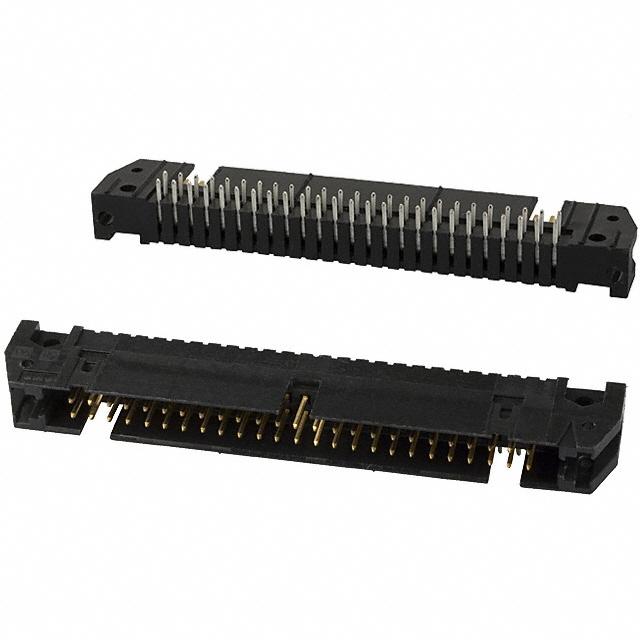

Are you looking for a solution to support physical configuration options on your PCB? Then mount this ejector 1-5102162-0 header connector from TE Connectivity on your PCB today! This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over palladium nickel|gold over nickel. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. 1-5102162-0 is housed in black nylon|polyester. It uses the solder termination method. This product is 82.8 mm long, 8.53 mm tall and 13.94 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  1-5102162-0  A/L UNIV HDR 50P RA New

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
A/L UNIV HDR 50P RA

Electro Sonic:
A/L UNIV HDR 50P RA
