1-794071-0

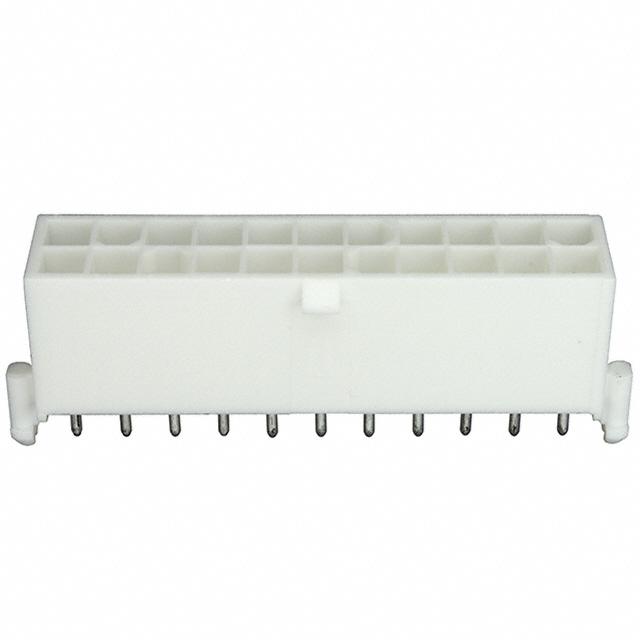

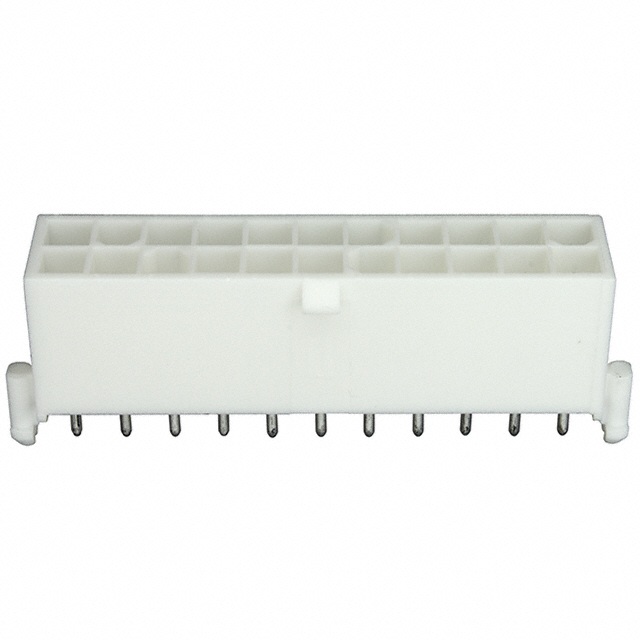

微型通用 MATE-N-LOK 22 位置 通孔 双排 直 插针 针座

针座 通孔 22 位置 0.163"（4.14mm）

得捷:
CONN HEADER VERT 22POS 4.14MM

艾睿:
This robust 1-794071-0 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 22 contacts that are made out of brass and plated with tin over nickel. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 600 VAC. Its pitch is 4.14 mm. It has a header type gender. This device has a maximum current rating of 9.5 A/contact. 1-794071-0 is housed in nylon. This product is 14.25 mm tall. Its 22 terminals use the solder termination method.

Jameco:
Connector Power Header 22 Position 4.14mm Solder Straight Through Hole 22 Terminal 1 Port

安富利:
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port

Chip1Stop:
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Bag

Verical:
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Bag

MASTER:
HEADER ASSEMBLY, 22 CIRCUIT, DOUBLE ROW VERTICAL, MINI-UNIVERSAL MATE-N-LOK

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
22P MINI UMNL HDR W/DH SN LF

Electro Sonic:
22P MINI UMNL HDR W/DH SN LF
