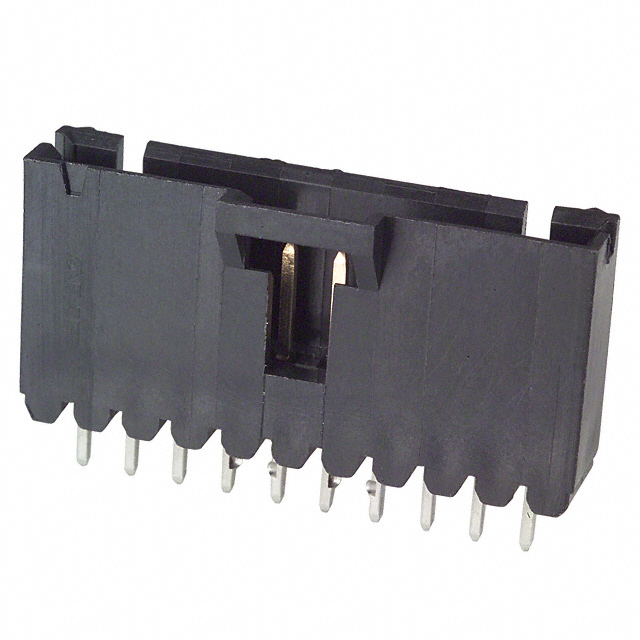

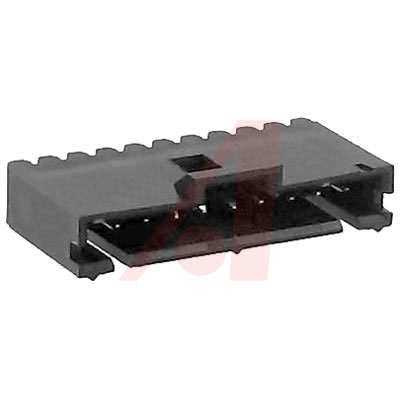

103670-9

AMPMODU 10 位置 通孔 单排 直 0.100英寸 针座

3 A , 600 V , Thermoplastic Housing, Single Row MTE IDC Header

* With PCB retention

* 15 Milliohms termination resistance

* 0.025 in. post size

* Materials: Housings — Black Thermoplastic, UL 94V-0 Rated; Contact — Copper Alloy

得捷:
CONN HEADER VERT 10POS 2.54MM

贸泽:
集管和线壳 LATCH HDR W/SWAGE 10

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 103670-9 header connector from TE Connectivity. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 27.94 mm long, 13.59 mm tall and 6.98 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 103670-9 is housed in black thermoplastic.

Allied Electronics:
Header; 10; 3 A; 600 V; MTE IDC; 1; Vertical; 0.100 in.; 5000 Megohms; Brass

Jameco:
Connector Shrouded Header 10 Position 2.54mm Solder Straight Thru-Hole Tube

安富利:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  103670-9  Wire-To-Board Connector, 2.54 mm, 10 Contacts, Header, AMPMODU MTE Series, Through Hole, 1 Rows

MASTER:
HDR ASSY, VERT, SINGLE ROW 2.54[.100] CL, 0.64[.025] SQ POST, WITH PLZN

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
10 MTE HDR SRST LATCH W/HLDWN

Electro Sonic:
10 MTE HDR SRST LATCH W/HLDWN
