174552-1

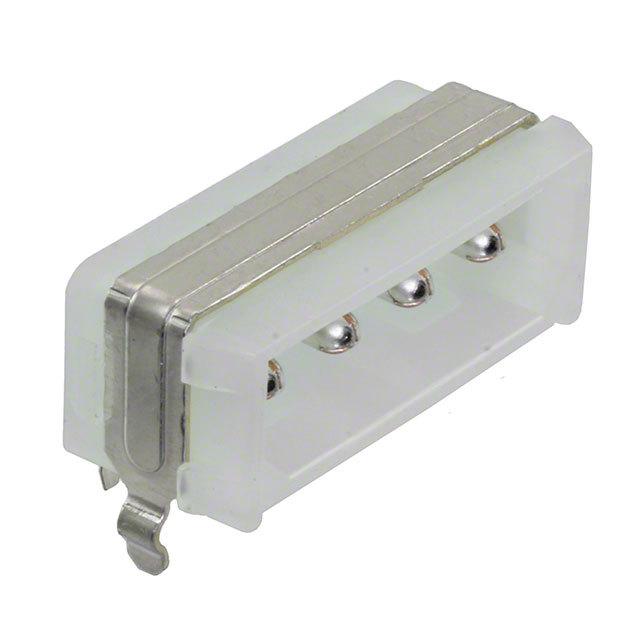

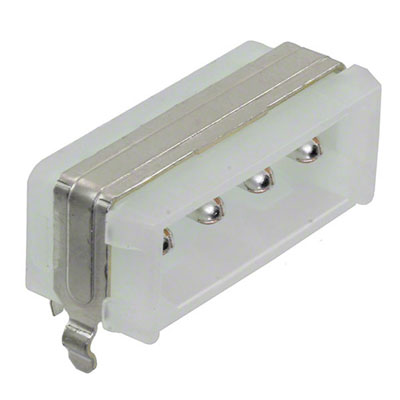

Connector Power Header 4Position 5.08mm Solder Right Angle Through Hole 4 Terminal 1Port

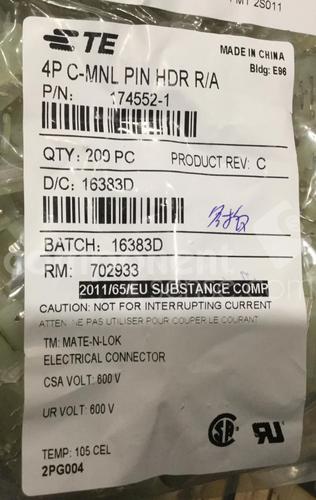

4P C-MNL PIN HDR R/A

Product Highlights

Header

Contact Diameter = 2.13 mm

Number of Circuits = 4

5.08 mm Centerline, Matrix

In-Line Contact Layout

得捷:
CONN HEADER R/A 4POS 5.08MM

立创商城:
174552-1

e络盟:
CONNECTOR, PLUG, 4POS, 5.08MM

艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 174552-1 power connector from TE Connectivity for a secure connection! This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with tin over nickel. This connector has a single port. It has a right angle body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. This device has a maximum current rating of 13 A/contact. 174552-1 is housed in nylon 6/6. This product is 25.3 mm long, 9.4 mm tall and 11.5 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 85 °C. Its 4 terminals use the solder termination method.

Jameco:
Connector Power Header 4 Position 5.08mm Solder Right Angle Through Hole 4 Terminal 1 Port

安富利:
Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port

Chip1Stop:
Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port Bag

Verical:
Connector Mate N Lock HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  174552-1  Rectangular Connector, Commercial MATE-N-LOK Series, 4 Contacts, Plug, 5.08 mm, Through Hole, 1 Row

MASTER:
Rectangular Connector - Commercial MATE-N-LOK Series - 4 Contacts - Plug - 5.08 mm - Through Hole - 1 Row.

Powell:
.200" Centerline, 250 V, 13 A max.

Online Components:
4P C-MNL PIN HDR R/A

Electro Sonic:
Rectangular Connector - Commercial MATE-N-LOK Series - 4 Contacts - Plug - 5.08 mm - Through Hole - 1 Row.

Win Source:
CONN HEADER R/A 4POS 5.08MM / Connector Header Through Hole, Right Angle 4 position 0.200" 5.08mm
