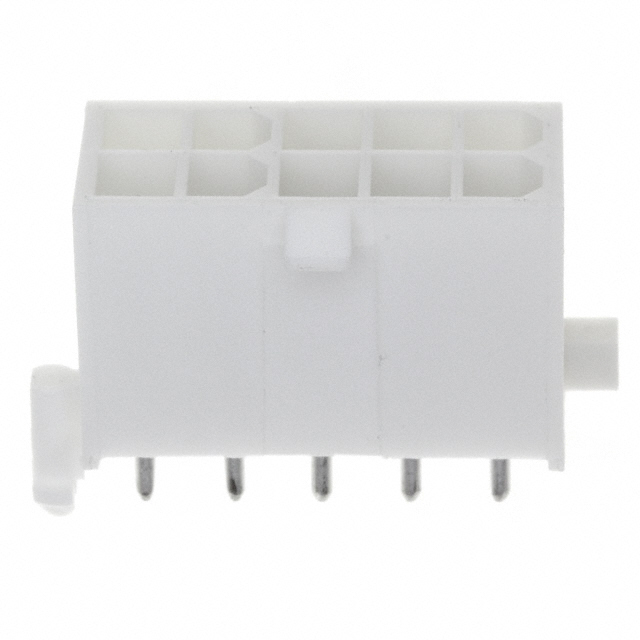

1-770743-0

AMP FROM TE CONNECTIVITY  1-770743-0  连接器, 公, 10路, 4.14MM

针座 通孔 10 位置 0.163"（4.14mm）

得捷:
CONN HEADER VERT 10POS 4.14MM

立创商城:
4.14mm 2x5P 直插

e络盟:
连接器, 公, 10路, 4.14MM

艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 1-770743-0 power connector from TE Connectivity for a secure connection! This HDR connector&s;s 10 contacts that are made out of brass and plated with tin over nickel. Its pitch is 4.14 mm. It has a header type gender. This connector has a single port. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. This device has a maximum current rating of 9.5 A/contact. 1-770743-0 is housed in nylon. Its 10 terminals use the solder termination method. This product is 27.43 mm long, 14.25 mm tall and 11.88 mm deep.

Allied Electronics:
Mini-Universal MATE-N-LOK Series, 4.14mm Pitch 10 Way 2 Row Straight PCB Header

Jameco:
Connector Power Header 10 Position 4.14mm Solder Straight Through Hole 10 Terminal 1 Port

安富利:
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port

Verical:
Conn HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port

Newark:
Rectangular Connector, Mini Universal MATE-N-LOK Series, 10 Contacts, Plug, 4.14 mm, Through Hole

MASTER:
HEADER ASSEMBLY, 10 CKT, DOUBLE ROW VERTICAL MINI UNIVERSAL MATE-N-LOK

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
10P MINI UMNL HDR ASSY D/R VRT

Electro Sonic:
10P MINI UMNL HDR ASSY D/R VRT
