103310-1

集管和线壳 10P R/A HEADER

010 LOPRO HDR RA 15DP

Product Highlights

Connector Type = Pin Headers

Low Profile

Number of Positions = 10

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Right Angle

得捷:
CONN HEADER R/A 10POS 2.54MM

贸泽:
集管和线壳 10P R/A HEADER

艾睿:

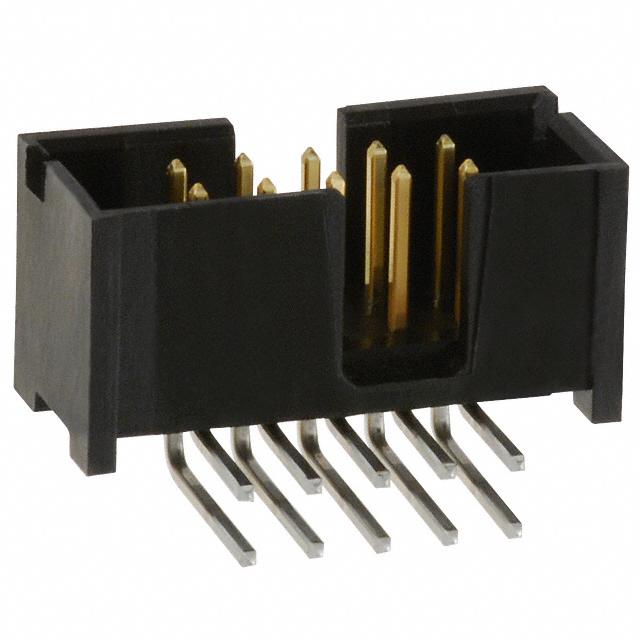

As an added safety precaution, the shrouded 103310-1 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 10 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel|gold over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 20.32 mm long, 9.14 mm tall and 12.31 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 103310-1 is housed in black thermoplastic.

Allied Electronics:
LO/PRO HDR, 010 LOPRO HDR RA 15DP

Jameco:
Connector Shrouded Header 10 Position 2.54mm Solder Right Angle Thru-Hole

安富利:
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 2.54mm Solder RA Thru-Hole Tube

MASTER:
HEADER ASSY, LOW PROFILE, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
010 LOPRO HDR RA 15DP

Electro Sonic:
010 LOPRO HDR RA 15DP
