1-102321-2

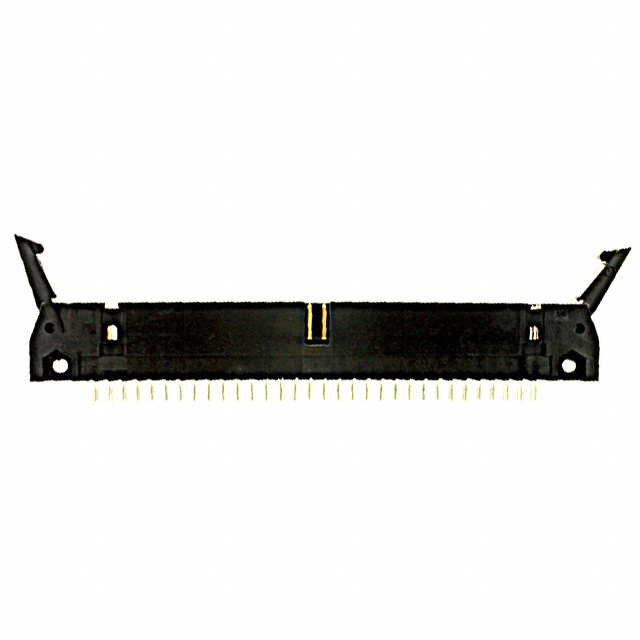

Conn Ejector Header HDR 64POS 2.54mm Solder ST Thru-Hole

Safety is an important concern when designing electronic devices. "s ejector header connector helps protect your equipment from accidental shortages. This HDR connector has 64 contacts that are plated with gold over palladium nickel over nickel|gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 1-102321-2 is housed in black thermoplastic. This product is 100.58 mm long, 27.3 mm tall and 8.53 mm deep.
