1-794070-1

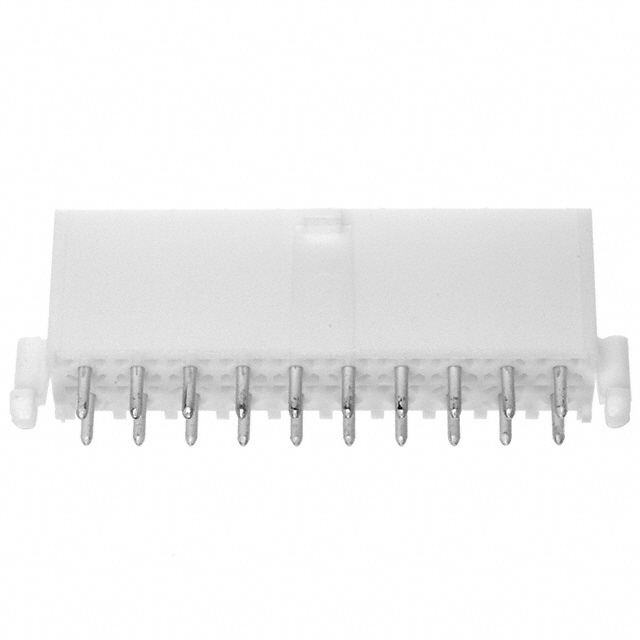

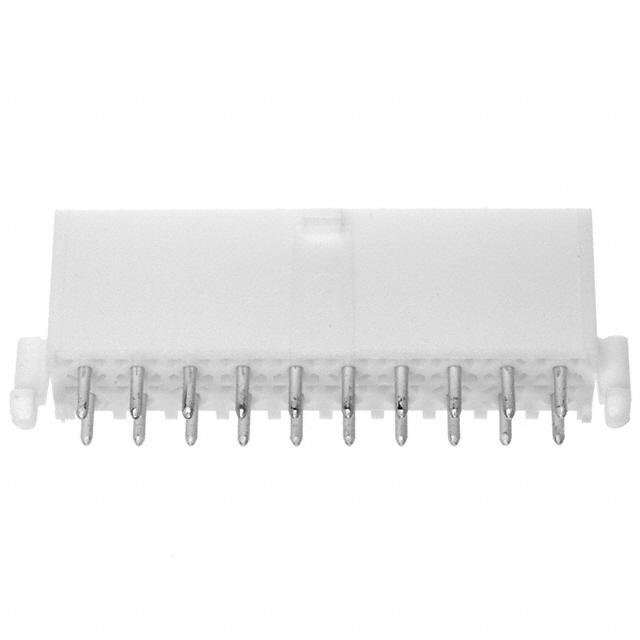

MATE-N-LOK 20 位置 通孔 双排 直 插针 针座

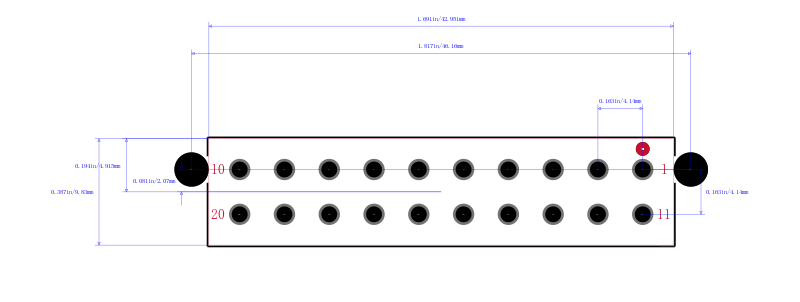

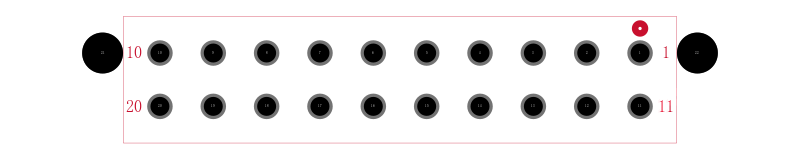

针座 通孔 20 位置 0.163"（4.14mm）

得捷:
CONN HEADER VERT 20POS 4.14MM

立创商城:
1-794070-1

贸泽:
Pin & Socket Connectors HEADER 20 POS GOLD DUAL ROW

艾睿:

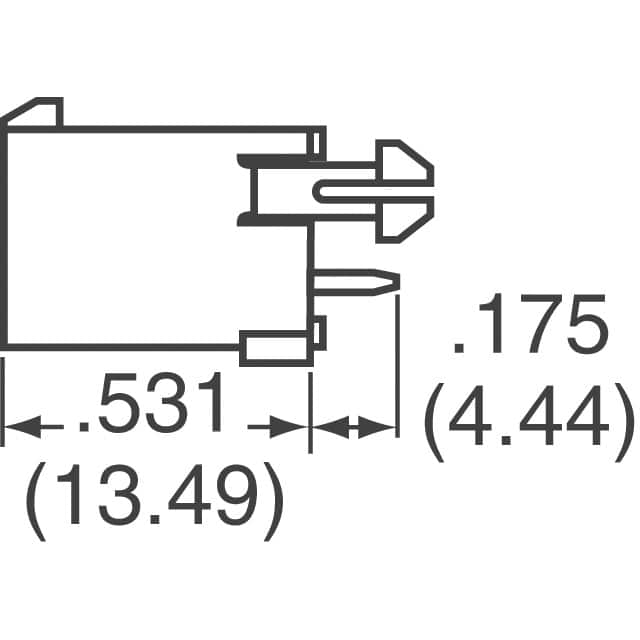

Mount this wire to board 1-794070-1 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This PIN connector&s;s 20 contacts that are made out of brass and plated with gold over nickel. Its pitch is 4.14 mm. This is a 2-row connector. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. This device has a maximum current rating of 9.5 A/contact. 1-794070-1 is housed in white nylon. This product is 13.49 mm tall. This connector has an operating temperature of -20 to 105 °C. It uses the solder termination method.

安富利:
Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Bag

Verical:
20P Mini Umnl Hdr With Dh Au Lf

Newark:
# AMP - TE CONNECTIVITY  1-794070-1  Wire-To-Board Connector, 4.14 mm, 20 Contacts, Header, Mini Universal MATE-N-LOK 2 Series

MASTER:
HEADER ASSEMBLY, 20 CIRCUIT, DOUBLE ROW VERTICAL, MINI-UNIVERSAL MATE-N-LOK

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
20P MINI UMNL HDR W/DH AU LF

Electro Sonic:
20P MINI UMNL HDR W/DH AU LF
