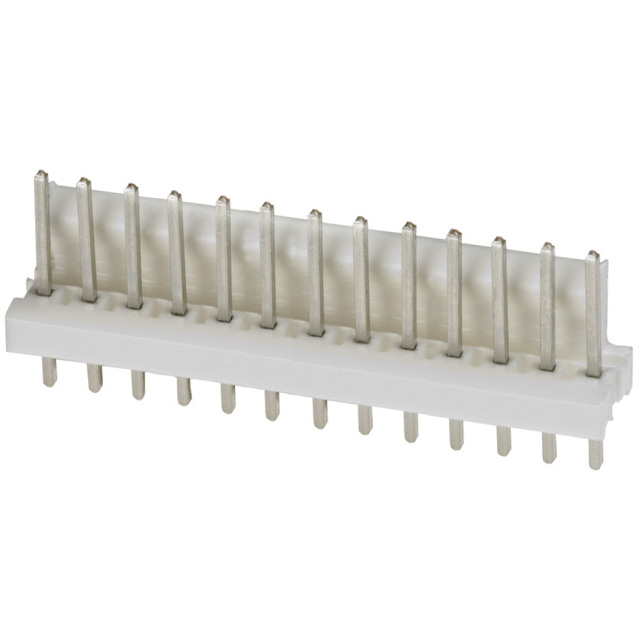

1-640454-3

MTA-100 13 位置 通孔 单排 直 线对板 针座

13P MTA100 HDR ASSY SQ STR POL

Product Highlights

MTA-100 Connectors

Number of Positions = 13

Mating Type = Header

Wire-to-Board Application

2.54 mm Contact Centerline Spacing

得捷:
CONN HEADER VERT 13POS 2.54MM

艾睿:
As an added safety precaution, the wire to board 1-640454-3 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 13 contacts that are made out of copper alloy and plated with tin. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 5 A/contact. 1-640454-3 is housed in white polyester. This product is 33.02 mm long, 10.03 mm tall and 5.72 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Wire to Board HDR 13 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 13 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 13 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1-640454-3  13P MTA100 HDR ASSY SQ STR POL New

MASTER:
MTA-.100 HDR ASSY, POLARIZED, NOTCHED, .025 SQUARE STRAIGHT POST, TIN PLATED

Online Components:
13P MTA100 HDR ASSY SQ STR POL

Electro Sonic:
13P MTA100 HDR ASSY SQ STR POL
