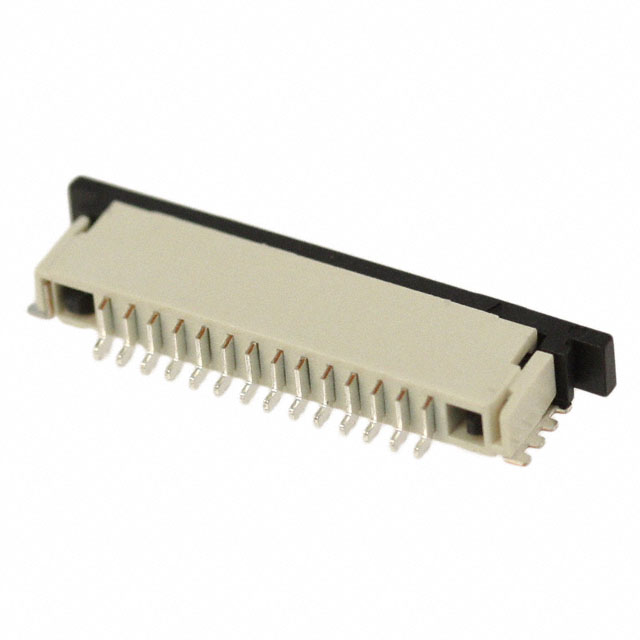

AMP FROM TE CONNECTIVITY 1-84952-4 连接器, FFC/ FPC板, 14 触点, 插座, 1 mm, 表面安装 , 底部
是一款14路1排ZIF直角Flex-to-Board FPC, 2µm镀锡磷青铜触芯, UL94V-O玻璃增强聚酯 LCP外壳。FPC系列插座带有填充执行器, 表面安装端接至PC板。
得捷:
CONN FPC BOTTOM 14POS 1MM R/A
立创商城:
1-84952-4
欧时:
1MM FPC HORZ.BTTM CONT.ASS.14P
贸泽:
FFC & FPC连接器 ZIF BTM 1X14P SMT 1MMX1MM FPC
艾睿:
This fpc connector 1-84952-4 flexible printed circuit from TE Connectivity can have discrete components built on it. Its pitch is 1 mm. It has a right angle body orientation. This is a 1-row connector. This socket type connector&s;s 14 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 200 VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. 1-84952-4 is housed in natural liquid crystal polymer. This product is 21.92 mm long, 2.56 mm tall and 6.54 mm deep. This flexible flat cable has an operating temperature of -40 to 85 °C. It uses the solder termination method.
Chip1Stop:
Conn FPC Connector SKT 14 POS 1mm Solder RA SMD T/R
Verical:
Conn FPC Connector SKT 14 POS 1mm Solder RA SMD T/R
Newark:
# AMP - TE CONNECTIVITY 1-84952-4 FFC / FPC Board Connector, 1 mm, 14 Contacts, Receptacle, Surface Mount, Bottom
MASTER:
1MM FPC BOTTOM CONTACT LEADFREE
Powell:
FPC Flexible Printed Circuit Connectors
Online Components:
1MM FPC HORZ.BTTM CONT.ASS.14P
Electro Sonic:
1MM FPC HORZ.BTTM CONT.ASS.14P
触点数 14
极性 Female
触点电镀 Tin
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 14
屏蔽 No
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 200 VAC
额定电压 200 V
安装方式 Surface Mount
封装 SMD
引脚间距 1.00 mm

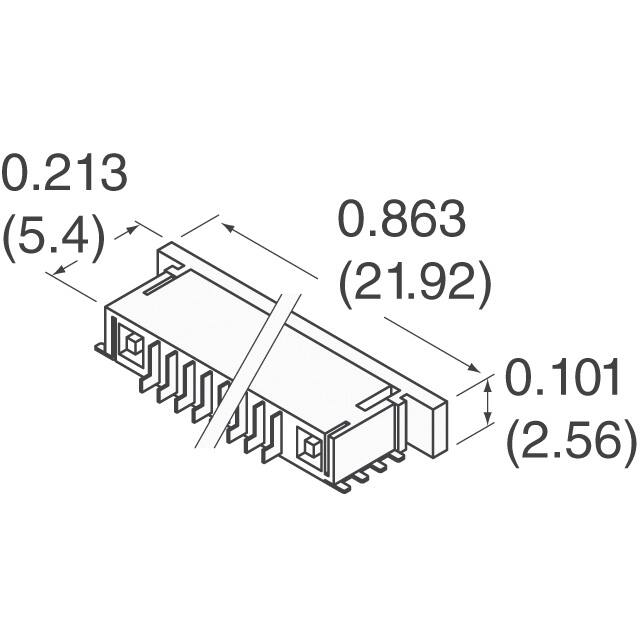

长度 21.92 mm
宽度 5.4 mm
高度 2.56 mm
封装 SMD
引脚间距 1.00 mm
外壳颜色 Natural
颜色 Natural
触点材质 Phosphor Bronze
材质 Thermoplastic
工作温度 -40℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal, 工业, Industrial, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-84952-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
SFW14R-2STE9LF 安费诺 | 类似代替 | 1-84952-4和SFW14R-2STE9LF的区别 |
SFW14R-1STE9LF 法马通 | 功能相似 | 1-84952-4和SFW14R-1STE9LF的区别 |
52207-1460 莫仕 | 功能相似 | 1-84952-4和52207-1460的区别 |
