133-8701-301

Conn MCX RCP 0Hz to 6GHz 75Ω Solder RA Thru-Hole Gold

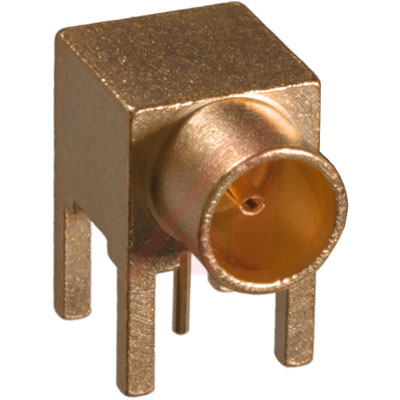

Right Angle PC Mount Jack Receptacle MCX Connectors, 75 Ohms Impedance, 0 to 6 GHz frequency

** Working Voltage Rating at Sea Level for Cable Type:** RG-178 — 250 VRMS; RG-316, 0.086" semi-rigid and uncabled adapters — 335 VRMS. ** Frequency Range:** 0-6 GHz. ** Materials:** Body — Brass, gold-plated; Crimp sleeves — Copper, gold-plated; Mounting hardware — Brass nuts, phosphor bronze lockwasher, gold or nickel plated. ** Insulation:** PTFE fluorocarbon.

* 30% Smaller than the SMB Connectors

* Plating: Gold Over Brass Except Where Noted
