142-0693-101

射频/同轴, SMA 公, 直角型, 50Ω, 焊接

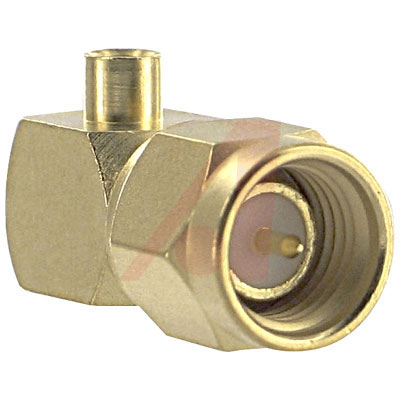

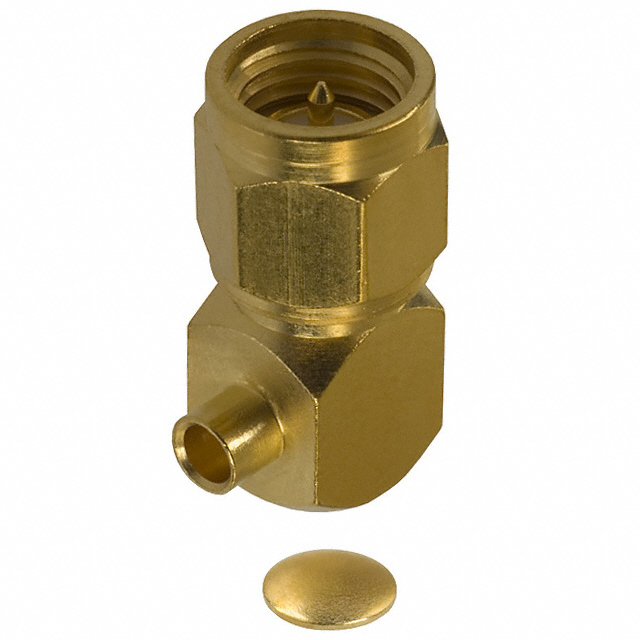

SMA Connector, Right Angle Solder Type Plug for Semi-Rigid Cable

Brass bodies with gold or nickel plating.

.

* Contacts:** Male — brass with gold plating; Female — beryllium copper with gold plating. ** Insulators:** PTFE fluorocarbon or tefzel. ** Working Voltage V RMS Maximum for Cabled Connectors:** Ranges from 170 for RG-178 to 500 for 0.141 semi-rigid with contact. ** Frequency Range:** Cabled Connectors — 0-12.4 GHz; Uncabled Receptacles, RA Semi-Rigid Cable Connectors — 0-18.0 GHz; Straight Semi-Rigid Cable Connectors and Field Replaceable Connectors — 0-26.5 GHz.
