138-4416-007

138-4416-007图片1

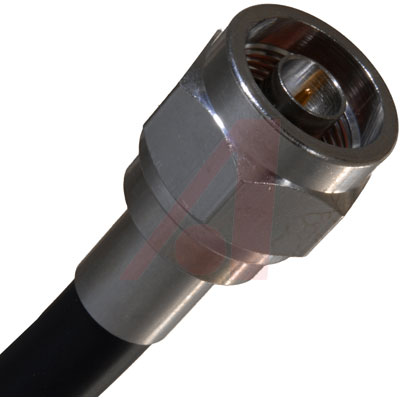

138-4416-007图片2
138-4416-007图片3

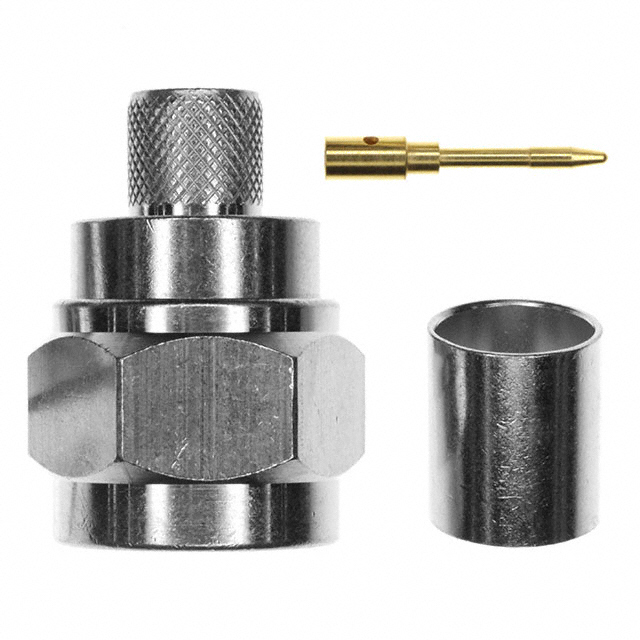

138-4416-007图片4
138-4416-007概述

RF连接器/同轴连接器 STR CRIMP PLUG SOLDER OR CRIMP CONT

**Type N Cable Crimp Connectors**

Cinch Connectivity range of N type crimp RF coaxial connectors have a brass body and gold plated center contact. These N type RF coax connectors are available in a variety of configurations for a wide range of applications.


得捷:
CONN N PLUG STR 50 OHM CRIMP


贸泽:
RF连接器/同轴连接器 STR CRIMP PLUG SOLDER OR CRIMP CONT


艾睿:
Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel


Allied Electronics:
Conn; RF; TypeN; Straight; CablePlug; Crimp; RG213


Electro Sonic:
Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel


138-4416-007中文资料参数规格
技术参数

频率 11 GHz

绝缘电阻 5000 MΩ

拔插次数 500

工作温度Max 165 ℃

工作温度Min -65 ℃

额定电压 1000 V

外形尺寸

高度 20.65 mm

物理参数

外壳颜色 Silver

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买138-4416-007
型号: 138-4416-007
制造商: Cinch Connectivity Solutions
描述:RF连接器/同轴连接器 STR CRIMP PLUG SOLDER OR CRIMP CONT
