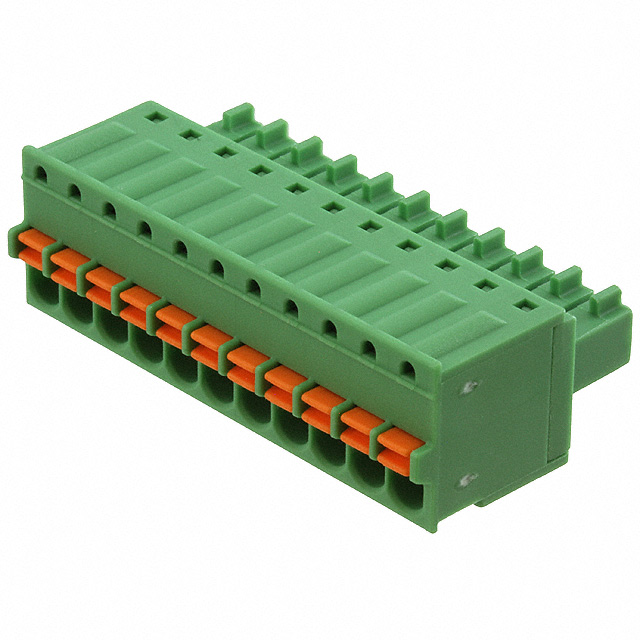

Phoenix Contact MINI COMBICON FK-MCP 系列 3.5mm 节距 11 路 母 绿色 插头 1939992, 弹簧笼端接
Conn Spring Cage F 11 POS 3.5mm ST Cable Mount 8A
得捷:
TERM BLOCK PLUG 11POS STR 3.5MM
欧时:
Phoenix Contact MINI COMBICON FK-MCP 系列 3.5mm 节距 11 路 母 绿色 插头 1939992, 弹簧笼端接
艾睿:
Join your electrical circuits and ensure strong connections with this spring cage 1939992 PCB terminal block from Phoenix Contact. This F connector has 11 contacts that are plated with tin. It has a female type gender. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 8 A. 1939992 is housed in polyamide. This product is 39.4 mm long, 12.4 mm tall and 20.8 mm deep. Its wire is 16-26 AWG.
MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 11 - pitch: 3.5 mm - connection method: Push-in spring connection - color: green - contact surface: Tin
Online Components:
Conn Spring Cage F 11 POS 3.5mm ST Cable Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
