1608294概述

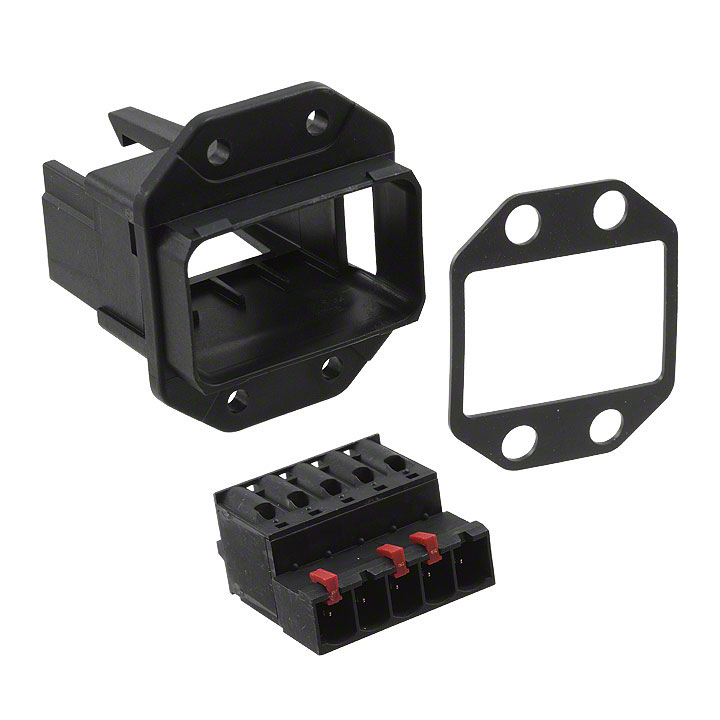

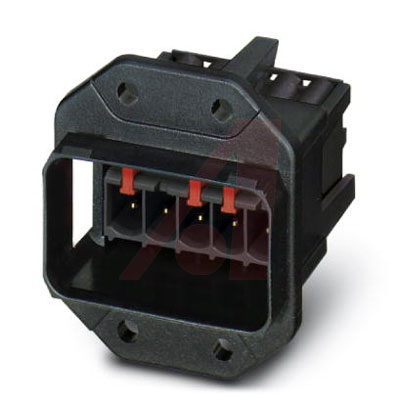

Conn Wire to Board HDR 5POS ST Panel Mount

Push-Pull connectors provide IP65 and IP67 protection to withstand harsh industrial environments, making them ideal for distributed control applications. The Push-Pull connector system is easy to operate - connectors are locked and unlocked with just one hand. These connectors protect against dirt, water, vibration/shock, and temperature extremes.


得捷:
TERM BLOCK HDR 5POS STR 5.08MM


贸泽:
Heavy Duty Power Connectors VS-PPC-F2-MSTB-POBK MSTB PNL MNT FRAME


Allied Electronics:
VS-PPC-F2-MSTB Series MSTB Panel Mounting Frame For Use With Panel


Electro Sonic:
Conn Wire to Board HDR 5 POS ST Panel Mount


1608294中文资料参数规格
技术参数

触点数 5

线规 13AWG ~ 18AWG

额定电流 16 A

排数 1

针脚数 5

额定电流Max 16 A

额定电压Max 24 V

额定电压 24 V

封装参数

安装方式 Panel

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1608294
型号: 1608294
描述:Conn Wire to Board HDR 5POS ST Panel Mount
