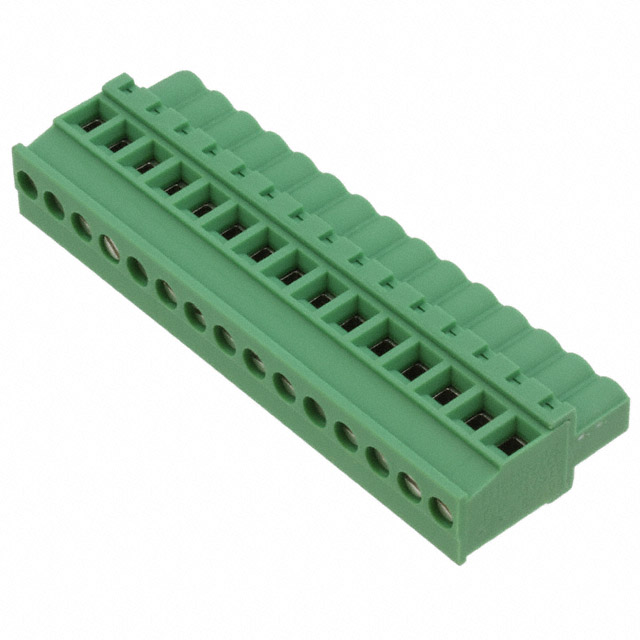

1792883

Phoenix Contact MVSTBW 系列 15路 5.08mm节距 印刷电路板接线端子块 1792883, 螺钉端接, 连接器

15 针位端子块 插头，母插口 0.200"（5.08mm） - 270° 自由悬挂

得捷:
TERM BLOCK PLUG 15POS 5.08MM

欧时:
Phoenix Contact MVSTBW 系列 15路 5.08mm节距 印刷电路板接线端子块 1792883, 螺钉端接, 连接器

贸泽:
Pluggable Terminal Blocks MVSTBW 2 5/15-ST-5 0

艾睿:
Join your electrical circuits and ensure strong connections with this 1792883 PCB terminal block from Phoenix Contact. This F connector has 15 contacts that are plated with tin. Its pitch is 5.08 mm. It has a female type gender. It has a maximum voltage rating of 320 V. It has a straight body orientation. This is a 1-row connector. 1792883 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 76.2 mm long, 26 mm tall and 12.6 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.

MASTER:
Conn Terminal Block F 15 POS 5.08mm Screw ST Cable Mount 12A

Online Components:
Conn Terminal Block F 15 POS 5.08mm Screw ST Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
