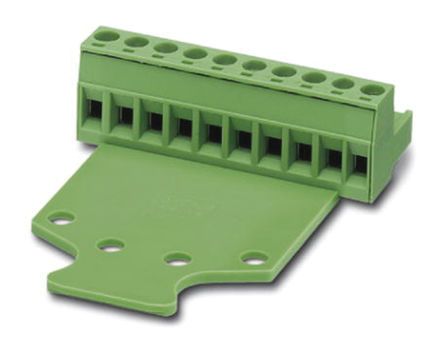

Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 11 路 母 绿色 插头 1764293, 螺钉端接
针位端子块
欧时:
Phoenix Contact 1764293 COMBICON MSTB 系列 5.08mm 节距 11 路 母 插头, 螺钉端接 绿色
得捷:
TERM BLOCK PLUG 11POS STR 5.08MM
艾睿:
This 1764293 PCB terminal block manufactured from Phoenix Contact will connect wires together. This F connector has 11 contacts that are plated with tin. It has a right angle body orientation. It has a female type gender. Its pitch is 5.08 mm. This is a 1-row connector. It has a maximum voltage rating of 320 V. 1764293 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. Its wire is 12-24 AWG. This product is 55.88 mm long and 61.8 mm.
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 11 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
