1737835

可插拔接线端子 4P 7.5mm 270DEG

4 针位端子块 插头，母插口 0.295"（7.50mm） - 270° 自由悬挂

得捷:
TERM BLOCK PLUG 4POS 7.5MM

欧时:
Printed-circuit board connector

贸泽:
可插拔接线端子 4P 7.5mm 270DEG

艾睿:

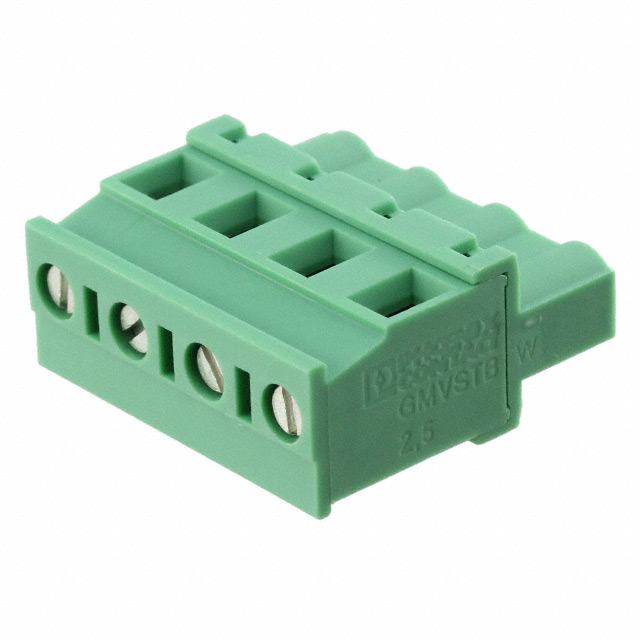

Joining multiple circuits is easy with this 1737835 PCB terminal block from Phoenix Contact. This F connector has 4 contacts that are plated with tin. Its pitch is 7.5 mm. This is a 1-row connector. It has a right angle body orientation. It has a female type gender. It has a maximum voltage rating of 630 V. 1737835 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 28 mm long, 26 mm tall and 12.6 mm deep. Its wire is 12-14 AWG. It uses the screw termination method.

Allied Electronics:
Conn; Term Blk; Plug; Screw; 4; Screw; 6 kV; 500 V; PA; M3; 7 mm

Verical:
Conn Terminal Block F 4 POS 7.5mm Screw RA Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 7.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
