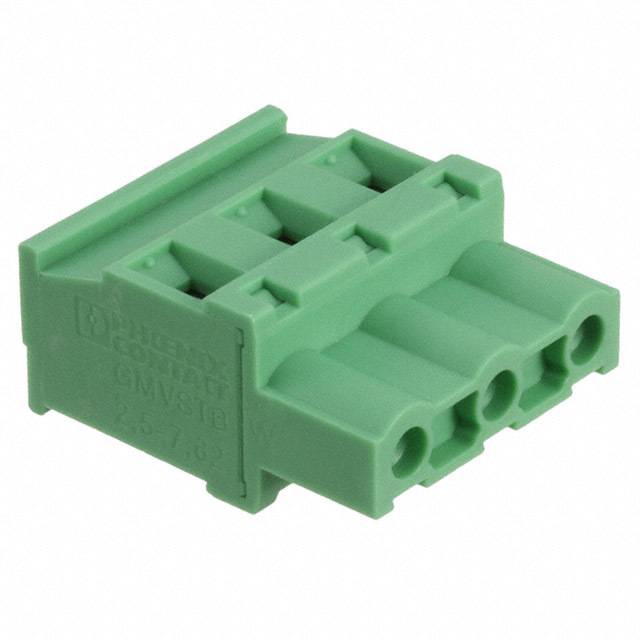

Phoenix Contact GMVSTBW 系列 3路 7.62mm节距 印刷电路板接线端子块 1832426, 螺钉端接, 连接器
Conn Terminal Block F 3 POS 7.62mm Screw ST Cable Mount 12A
得捷:
TERM BLOCK PLUG 3POS 7.62MM
欧时:
Phoenix Contact GMVSTBW 系列 3路 7.62mm节距 印刷电路板接线端子块 1832426, 螺钉端接, 连接器
艾睿:
Never worry about wires becoming undone by implementing this 1832426 PCB terminal block developed by Phoenix Contact. This F connector has 3 contacts that are plated with tin. Its pitch is 7.62 mm. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 630 V. It has a female type gender. 1832426 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. It uses the screw termination method. This product is 20.82 mm long, 26 mm tall and 12.6 mm deep.
Verical:
Conn Terminal Block F 3 POS 7.62mm Screw ST Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 7.62 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 3 POS 7.62mm Screw ST Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
