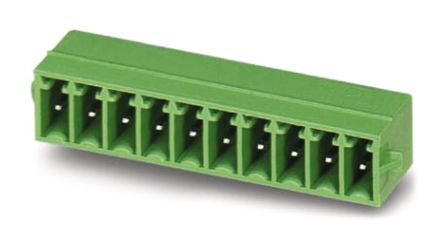

Phoenix Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制
得捷:
TERM BLOCK HDR 12POS 90DEG 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MC 系列 12路 3.5mm节距 1731772, 焊接端接, 8A
艾睿:
Think of Phoenix Contact&s;s wire to board 1731772 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 12 contacts that are plated with tin. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.5 mm. This device has a maximum current rating of 8 A. It uses the solder termination method. 1731772 is housed in green polybutylene terephthalate. This product is 46.2 mm long and 9.2 mm.
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board HDR 12 POS 3.5mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
