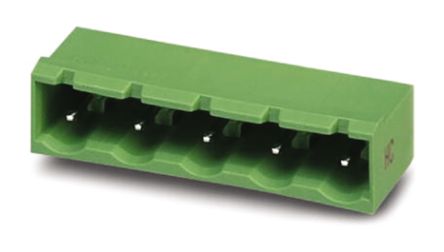

Phoenix Contact PCB 接线端子块 COMBICON GMSTBA 系列 9路 7.62mm节距 1728921, 焊接端接, 16A
Conn Shrouded Header HDR 9 POS 7.62mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 9POS 90DEG 7.62MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON GMSTBA 系列 9路 7.62mm节距 1728921, 焊接端接, 16A
艾睿:
Protect your printed circuit boards from accidental damages with Phoenix Contact&s;s shrouded 1728921 header connector. This HDR connector has 9 contacts that are plated with tin. It has a right angle body orientation. It has a header type gender. Its pitch is 7.62 mm. It has a maximum voltage rating of 630 V. This is a 1-row connector. This device has a maximum current rating of 16 A. This product is 68.58 mm long, 8.6 mm tall and 12 mm deep. 1728921 is housed in green polyamide. It uses the solder termination method.
MASTER:
PCB headers - nominal current: 16 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 9 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 9 POS 7.62mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 16 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
