1935006

可插拔接线端子 16 Pos 5mm pitch Plug 26-14 AWG Screw

Conn Terminal Block F 16 POS 5mm Screw Straight/Right Angle Thru-Hole 12A

得捷:
TERM BLOCK PLUG 16POS 90DEG 5MM

贸泽:
可插拔接线端子 16 Pos 5mm pitch Plug 26-14 AWG Screw

艾睿:

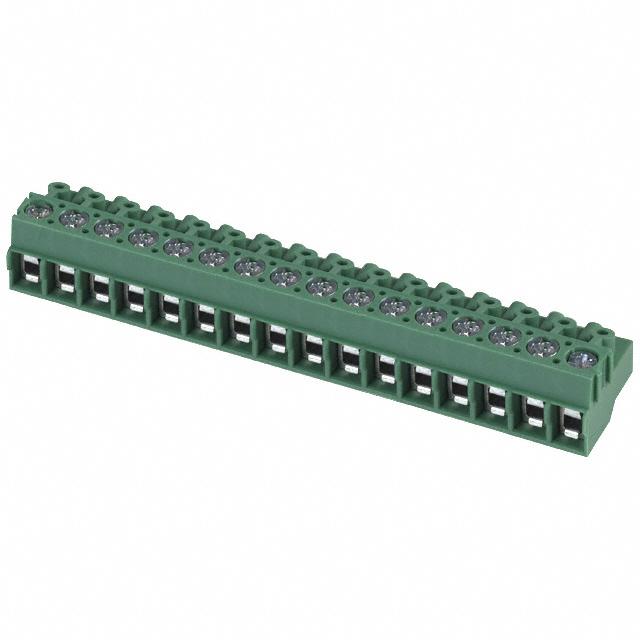

This 1935006 PCB terminal block manufactured from Phoenix Contact will connect wires together. This F connector has 16 contacts that are plated with tin. This is a 1-row connector. Its pitch is 5 mm. It has a straight/right angle body orientation. It has a female type gender. It has a maximum voltage rating of 320 V. 1935006 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 80 mm long, 11.4 mm tall and 15 mm deep. It uses the screw termination method. Its wire is 14-26 AWG.

Allied Electronics:
Non-Fused Trm Blk, 16Way/Pole, Screw DownTerminals, 26 to 14AWG Through Hole, Nylon

Verical:
Conn Terminal Block F 16 POS 5mm Screw Straight/Right Angle Thru-Hole 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - number of positions: 16 - pitch: 5 mm - connection method: Screw connection with wire protector - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 16 POS 5mm Screw Straight/Right Angle Thru-Hole 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - ...
