1-284065-2

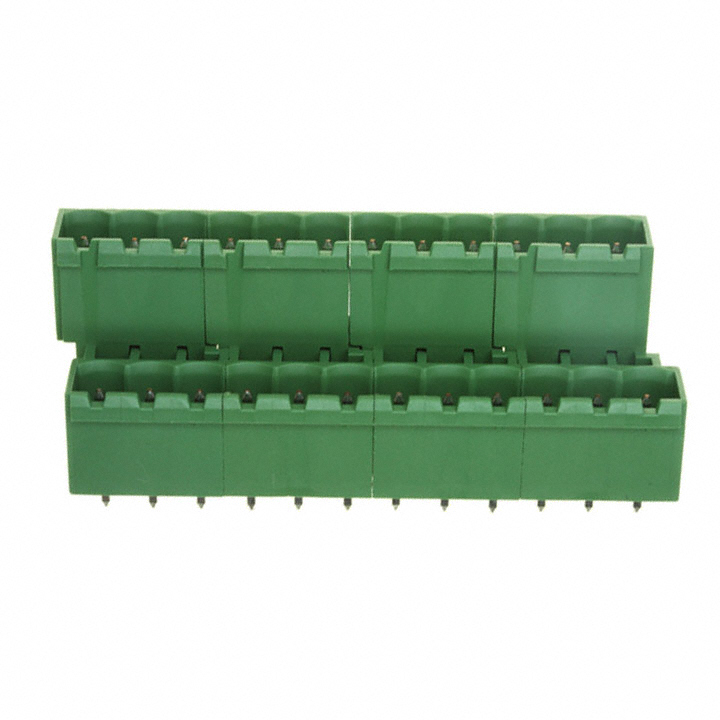

Conn Shrouded Header HDR 24POS 5.08mm Solder ST Thru-Hole Bag

TERMI-BLOK HDR 180, 5,08MM P.M

Product Highlights

Connector

Connector Type = Header

Shrouded

Housing Color = Green

Not Side Stackable

得捷:
TERM BLOCK HDR 24POS VERT 5.08MM

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 1-284065-2 header connector from TE Connectivity. This HDR connector&s;s 24 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 300 VAC. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 15 A/contact. 1-284065-2 is housed in green polyamide 6/6. It uses the solder termination method. This product is 65.54 mm long, 22.1 mm tall and 22.9 mm deep.

Newark:
# AMP - TE CONNECTIVITY  1-284065-2  TERMI-BLOK HDR 180, 5,08MM P.M New

MASTER:
TERMINAL BLOCK, MULTIPLE HEADER, 180 DEGREE CLOSED ENDS, 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK HDR 180, 5,08MM P.M

Electro Sonic:
TERMI-BLOK HDR 180, 5,08MM P.M
