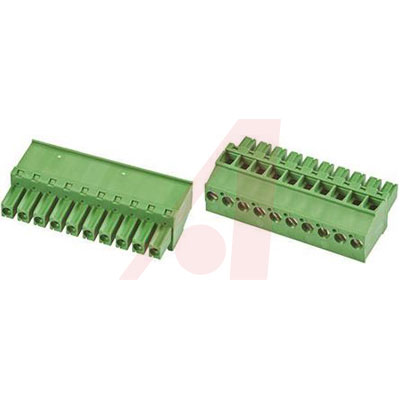

Conn Eurostyle Block F 11POS 3.81mm Screw ST Cable Mount 11A/Contact

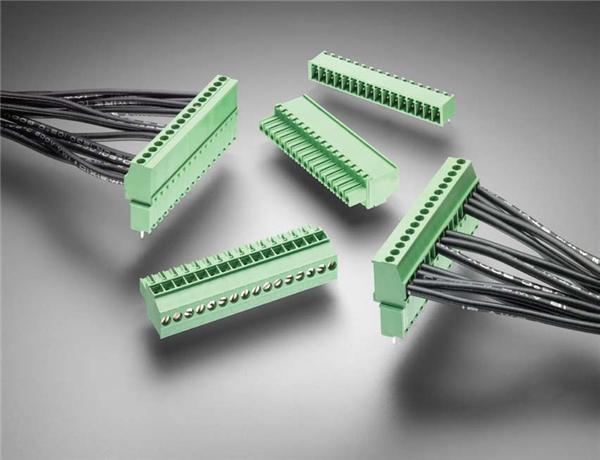

** 3.81mm Right Hand Terminal Block Plug Connectors**
Right hand terminal block plug connectors with a 3.81mm pitch and side wire entry. These 3.81mm right hand terminal block plug connectors are end to end stackable and have M2 rising screw clamp terminals that accept a wire size range of 30 to 14 AWG. The housings of these 3.81mm pluggable terminal block connectors are made from green PA 6.6.
触点数 11
线规 14AWG ~ 30AWG
触点电镀 Tin
额定电流 11 A
排数 1
电路数 11
易燃性等级 UL 94 V-0
针脚数 11
额定电流Max 11A/触头
工作温度Max 110 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
引脚间距 3.81 mm
高度 19.2 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 110℃
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
