1851096

Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 7 路 母 绿色 插头 1851096, 弹簧笼端接

Conn Spring Cage F 7 POS 3.81mm ST Cable Mount 8A

得捷:
TERM BLOCK PLUG 7POS STR 3.81MM

欧时:
Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 7 路 母 绿色 插头 1851096, 弹簧笼端接

艾睿:

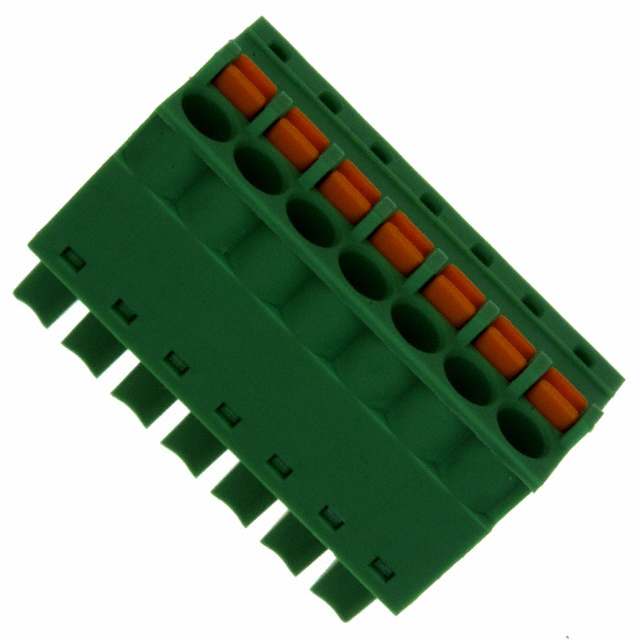

This spring cage 1851096 PCB terminal block manufactured from Phoenix Contact will connect wires together. This F connector has 7 contacts that are plated with tin. This is a 1-row connector. Its pitch is 3.81 mm. It has a maximum voltage rating of 160 V. It has a straight body orientation. It has a female type gender. 1851096 is housed in polyamide. This device has a maximum current rating of 8 A. This product is 27.46 mm long, 12.4 mm tall and 20.8 mm deep. Its wire is 16-26 AWG.

Verical:
Conn Spring Cage F 7 POS 3.81mm ST Cable Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 3.81 mm - connection method: Push-in spring connection - color: green - contact surface: Tin

Online Components:
Conn Spring Cage F 7 POS 3.81mm ST Cable Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
