Phoenix Contact PCB 接线端子块 COMBICON ICV 系列 6路 5.08mm节距 1825734, 焊接端接, 12A
Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 6POS VERT 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON ICV 系列 6路 5.08mm节距 1825734, 焊接端接, 12A
贸泽:
可插拔接线端子 6 Pos 5.08mm pitch Thru Hole Invert Hdr
艾睿:

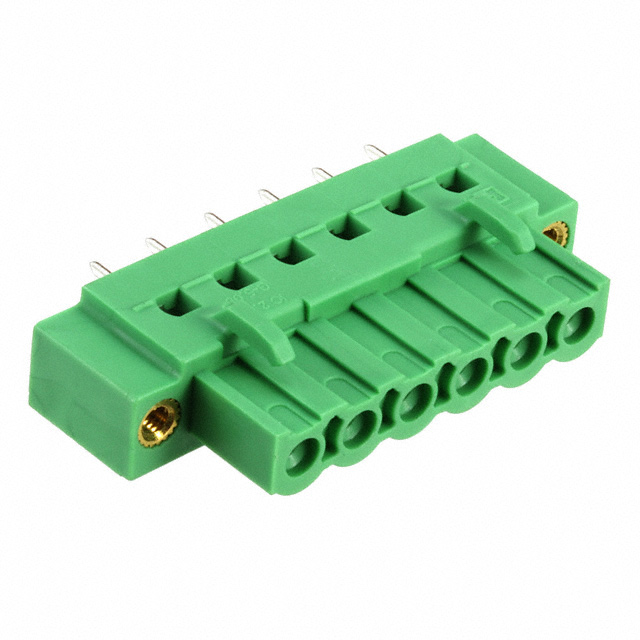

Easily mount this wire to board 1825734 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 6 contacts that are plated with tin. This is a 1-row connector. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 12 A. This product is 40.6 mm long, 19 mm tall and 10.2 mm deep. It uses the solder termination method. 1825734 is housed in green polyamide.
Verical:
Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
