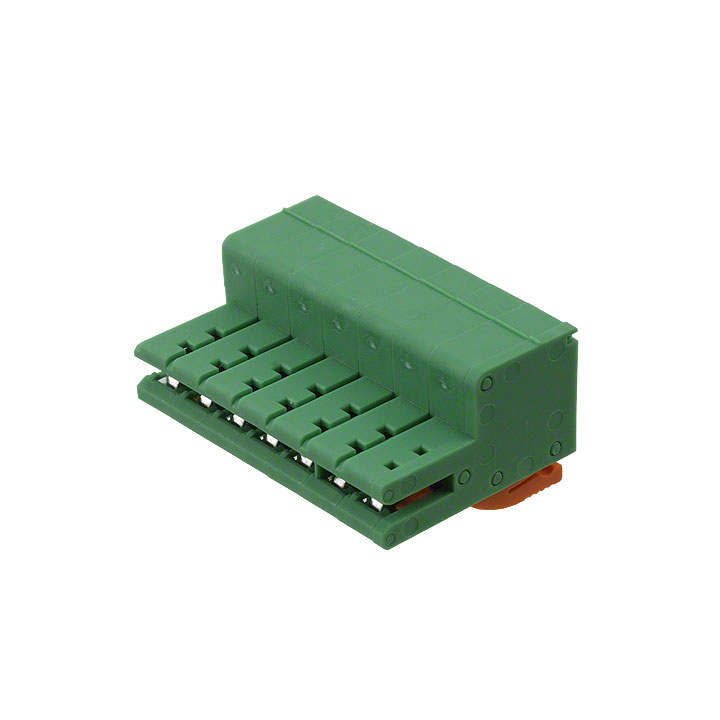

Phoenix Contact COMBICON ZEC 系列 5mm 节距 7 路 母 绿色 插头 1883093, 弹簧笼端接
7 针位端子块 插头，卡边 0.197"（5.00mm） - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 7POS STR 5MM
欧时:
Phoenix Contact COMBICON ZEC 系列 5mm 节距 7 路 母 绿色 插头 1883093, 弹簧笼端接
立创商城:
5mm 排数:1 每排P数:7
艾睿:
Connect test equipment together with other components by using this spring cage 1883093 PCB terminal block from Phoenix Contact. This F connector has 7 contacts that are plated with tin. It has a female type gender. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 320 V. Its pitch is 5 mm. 1883093 is housed in polyamide. This device has a maximum current rating of 10 A. This product is 24.05 mm deep. Its wire is 16-24 AWG. It uses the crimp termination method.
MASTER:
PCB direct plug - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 5 mm - connection method: Spring-cage connection - color: green - contact surface: Tin - mounting: Direct plug-in met
Online Components:
Conn Spring Cage F 7 POS 5mm Crimp ST Cable Mount 10A
Electro Sonic:
PCB direct plug - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² ...
