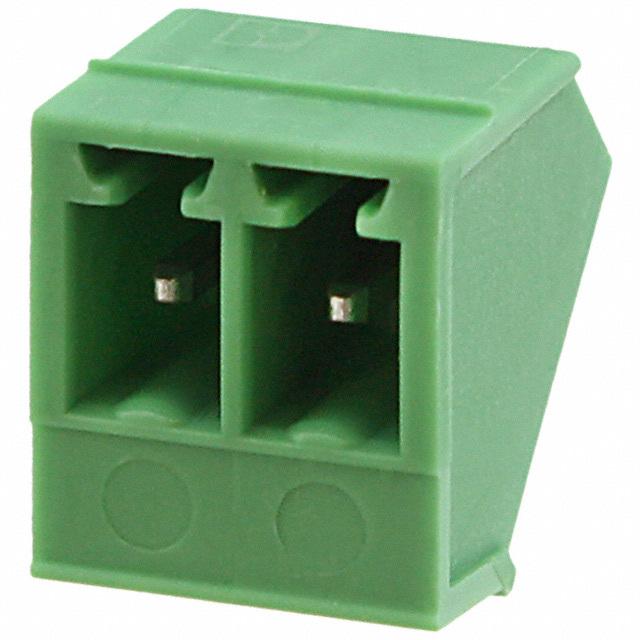

Phoenix Contact PCB 接线端子块 COMBICON SMC 系列 2路 3.81mm节距 1827279, 焊接端接, 8A
Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 2POS 45DEG 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON SMC 系列 2路 3.81mm节距 1827279, 焊接端接, 8A
贸泽:
可插拔接线端子 2 Pos 3.81mm pitch Through Hole Header
艾睿:
As an added safety precaution, the shrouded 1827279 header connector from Phoenix Contact will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector has 2 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 160 V. It has a right angle body orientation. Its pitch is 3.81 mm. This is a 1-row connector. This device has a maximum current rating of 8 A. This product is 66.16 mm long, 11 mm tall and 13.1 mm deep. It uses the solder termination method. 1827279 is housed in green polyamide.
Verical:
Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 2 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
