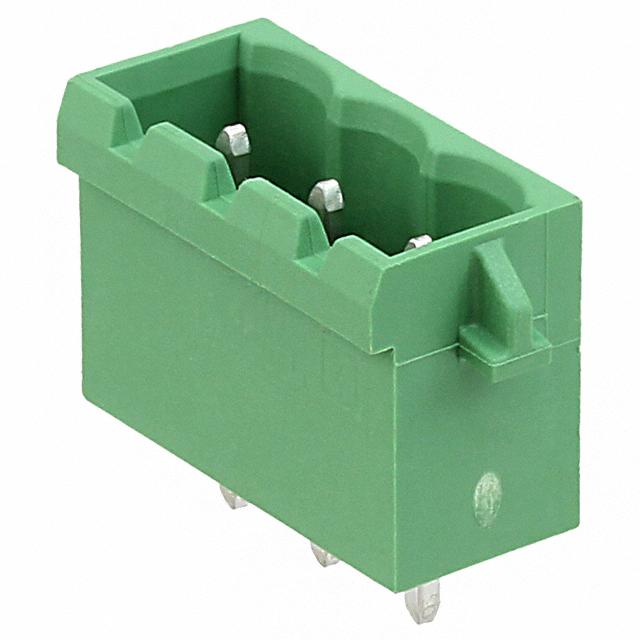

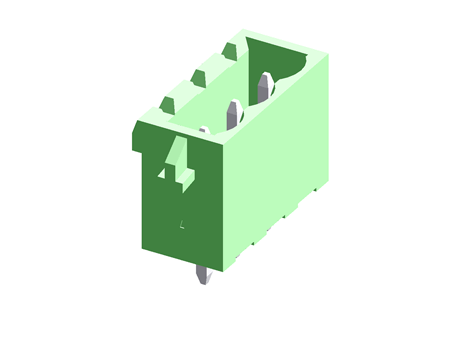

Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 3路 5.08mm节距 1936021, 焊接端接, 12A
针位端子块
得捷:
TERM BLOCK HDR 3POS VERT 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 3路 5.08mm节距 1936021, 焊接端接, 12A
贸泽:
可插拔接线端子 3 Pos 5.08mm pitch Through Hole Header
艾睿:

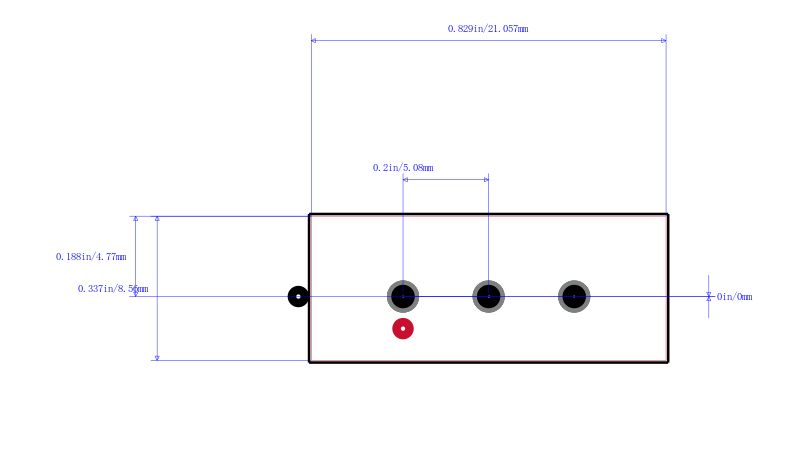

Thanks to Phoenix Contact&s;s shrouded 1936021 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 3 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a header type gender. This is a 1-row connector. Its pitch is 5.08 mm. It has a straight body orientation. This device has a maximum current rating of 12 A. 1936021 is housed in green polybutylene terephthalate. This product is 21.06 mm long, 12 mm tall and 8.6 mm deep. It uses the solder termination method.
Verical:
Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Top Entry Thru-Hole Cardboard
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
