2.5mm 排数:1 每排P数:6
6 针位端子块 接头，公引脚，带罩（4 面） 0.098"（2.50mm） 90°，直角 - 表面贴装型
得捷:
TERM BLOCK HDR 6POS 90DEG 2.5MM
立创商城:
2.5mm 排数:1 每排P数:6
艾睿:

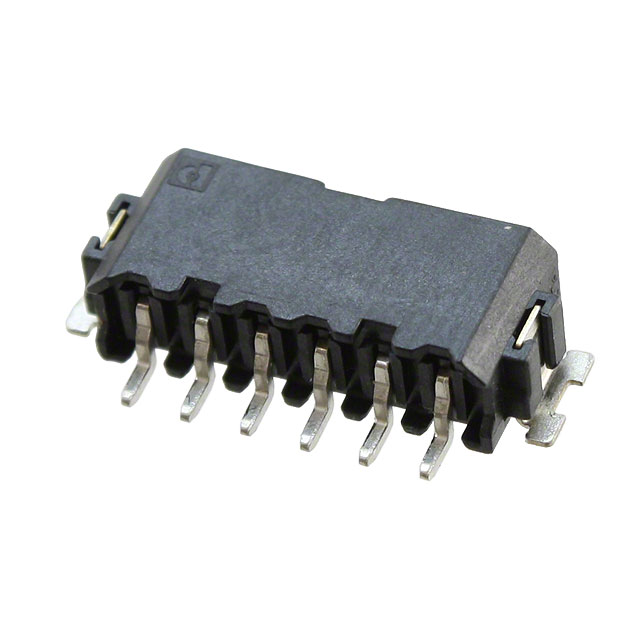

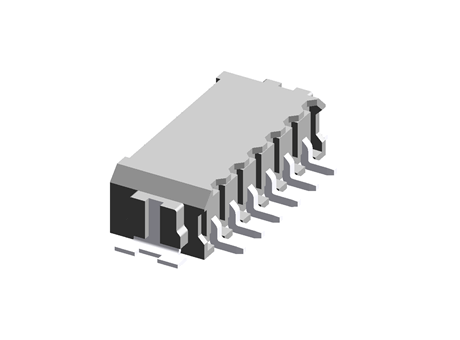

This shrouded 1778803 header connector from Phoenix Contact reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector has 6 contacts that are plated with tin. Its pitch is 2.5 mm. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 6 A. This product is 20.6 mm long, 5 mm tall and 7.5 mm deep. It uses the solder termination method. 1778803 is housed in black liquid crystal polymer.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; SMT; Sldr; 6Pole; 2.5mmPitch; COMBICONSeries
Verical:
Conn Shrouded Header HDR 6 POS 2.5mm Solder RA SMD T/R
Online Components:
Conn Shrouded Header HDR 6 POS 2.5mm Solder RA SMD T/R
Electro Sonic:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...
