1924101概述

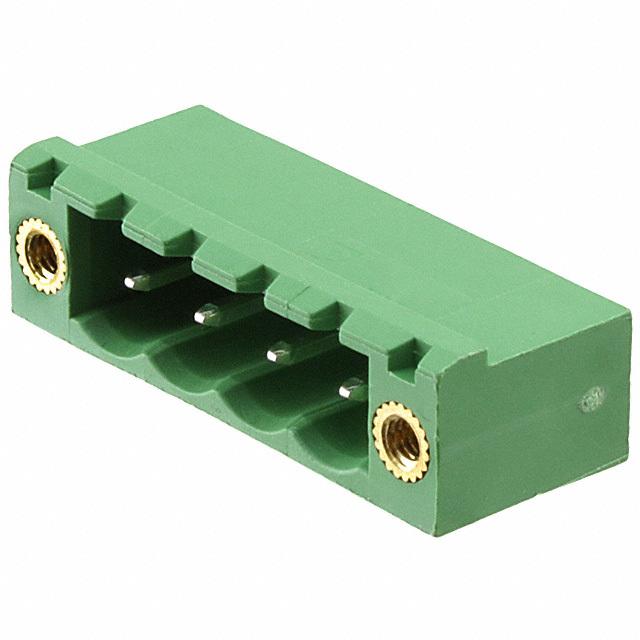

Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 4路 5.08mm节距 1924101, 焊接端接, 16A

Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole


得捷:
TERM BLOCK HDR 4POS 90DEG 5.08MM


欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 4路 5.08mm节距 1924101, 焊接端接, 16A


立创商城:
5.08mm 排数:1 每排P数:4


艾睿:
Reduce safety concerns with this shrouded 1924101 header connector from Phoenix Contact which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector has 4 contacts that are plated with tin. It has a right angle body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 16 A. This product is 20.32 mm long, 8.6 mm tall and 12 mm deep. 1924101 is housed in green polyamide. It uses the solder termination method.


Verical:
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole Cardboard


Online Components:
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole


Electro Sonic:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...


1924101中文资料参数规格
技术参数

触点数 4

触点电镀 Silver

额定电流 16 A

排数 1

易燃性等级 UL 94 V-0

针脚数 4

额定电流Max 16 A

额定电压Max 320 V

额定电压 400 V

封装参数

安装方式 Through Hole

封装 -

外形尺寸

高度 8.6 mm

封装 -

物理参数

外壳颜色 Green

颜色 Green

触点材质 Tin

工作温度 -40℃ ~ 100℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1924101
型号: 1924101
描述:Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 4路 5.08mm节距 1924101, 焊接端接, 16A
