1776883概述

Phoenix Contact PCB 接线端子块 COMBICON MSTBV 系列 2路 5mm节距 1776883, 焊接端接, 12A

Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole


得捷:
TERM BLOCK HDR 2POS VERT 5MM


欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBV 系列 2路 5mm节距 1776883, 焊接端接, 12A


贸泽:
Pluggable Terminal Blocks 2 Pos 5mm pitch Through Hole Header


艾睿:
Safety is an important concern when designing electronic devices. Phoenix Contact&s;s shrouded 1776883 header connector helps protect your equipment from accidental shortages. This HDR connector has 2 contacts that are plated with tin. It has a straight body orientation. It has a header type gender. This is a 1-row connector. Its pitch is 5 mm. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. 1776883 is housed in green polybutylene terephthalate. This product is 20 mm long, 12 mm tall and 8.6 mm deep. It uses the solder termination method.


Verical:
Conn Shrouded Header 4 Sides HDR 2 POS 5mm Solder ST Thru-Hole


MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9


Online Components:
Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole


Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...


1776883中文资料参数规格
技术参数

触点数 2

触点电镀 Silver

额定电流 12 A

排数 1

易燃性等级 UL 94 V-0

针脚数 2

安装角度 180 °

额定电流Max 12 A

额定电压Max 320 V

额定电压 400 V

封装参数

安装方式 Through Hole

引脚间距 5.00 mm

外形尺寸

长度 8.6 mm

宽度 8.60 mm

高度 12 mm

引脚间距 5.00 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Tin

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

1776883引脚图与封装图

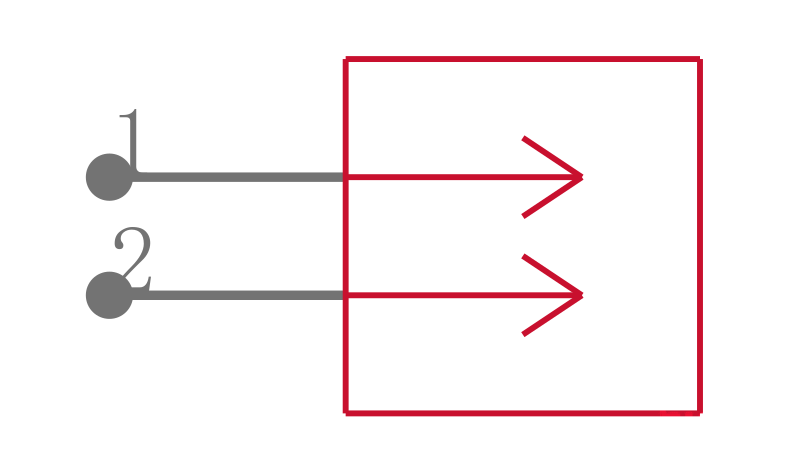

1776883引脚图

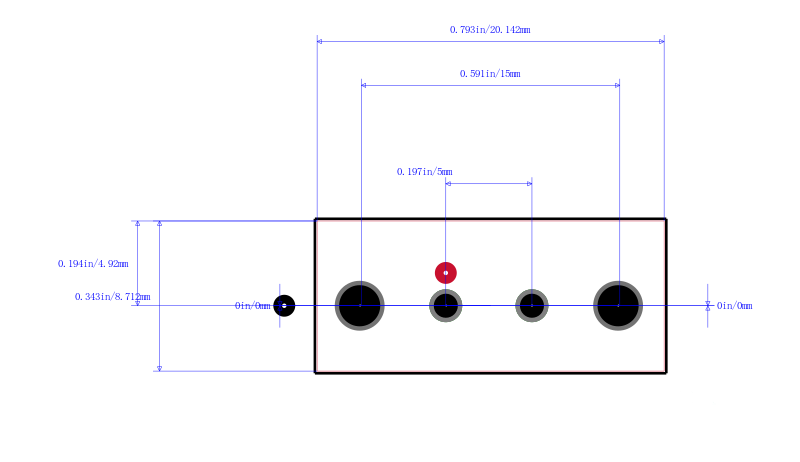

1776883封装图

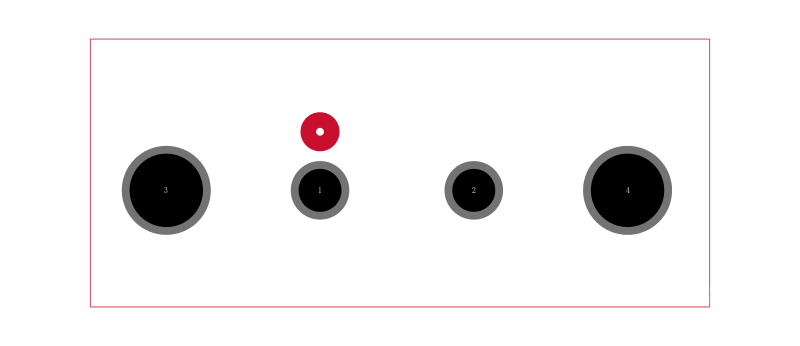

1776883封装焊盘图
