1755774

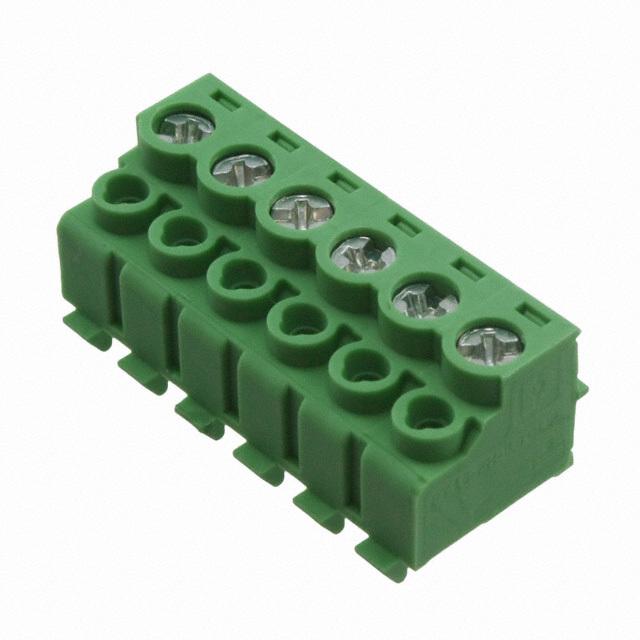

Phoenix Contact COMBICON PT 系列 5mm 节距 6 路 母 绿色 插头 1755774, 螺钉端接

Conn Terminal Block F 6 POS 5mm Screw RA Cable Mount 10A

得捷:
TERM BLOCK PLUG 6POS 90DEG 5MM

欧时:
Phoenix Contact COMBICON PT 系列 5mm 节距 6 路 母 绿色 插头 1755774, 螺钉端接

贸泽:
可插拔接线端子 6 Pos 5mm pitch Plug 26-14 AWG Screw

艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1755774 PCB terminal block. This F connector has 6 contacts that are plated with tin. This is a 1-row connector. It has a female type gender. It has a maximum voltage rating of 400 V. Its pitch is 5 mm. It has a right angle body orientation. This device has a maximum current rating of 10 A. 1755774 is housed in polyamide. This product is 30 mm long, 12.3 mm tall and 14.7 mm deep. It uses the screw termination method. Its wire is 14-26 AWG.

MASTER:
PCB connector - nominal current: 10 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - number of positions: 6 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 6 POS 5mm Screw RA Cable Mount 10A

Electro Sonic:
PCB connector - nominal current: 10 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - ...
