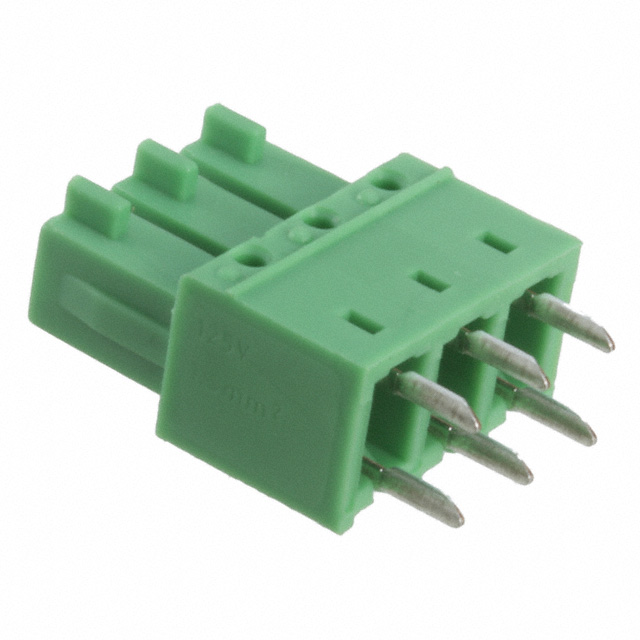

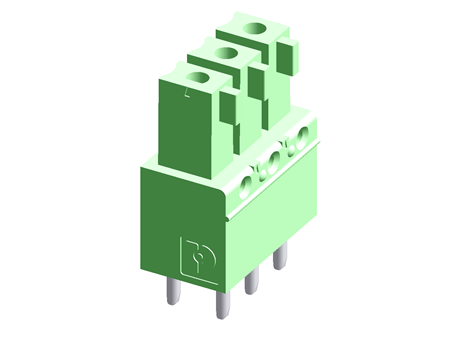

可插拔接线端子 3 Pos 3.81mm pitch Thru Hole Invert Hdr
3 针位端子块 接头，母型插口 0.150"（3.81mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 3POS VERT 3.81MM
欧时:
PCB header
贸泽:
可插拔接线端子 3 Pos 3.81mm pitch Thru Hole Invert Hdr
艾睿:
Protect your printed circuit boards from accidental damages with Phoenix Contact&s;s wire to board 1875438 header connector. This F connector has 3 contacts that are plated with tin. It has a female type gender. It has a maximum voltage rating of 160 V. Its pitch is 3.81 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 8 A. It uses the solder termination method. 1875438 is housed in green polyamide. This product is 12.22 mm long, 25.7 mm tall and 7.8 mm deep.
Verical:
Conn Wire to Board F 3 POS 3.81mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 3 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board F 3 POS 3.81mm Solder ST Thru-Hole
