Conn Shrouded Header HDR 5POS 5.08mm Solder RA Thru-Hole
5 针位端子块 接头，公引脚，带罩（4 面） 0.200"（5.08mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 5POS 90DEG 5.08MM
艾睿:

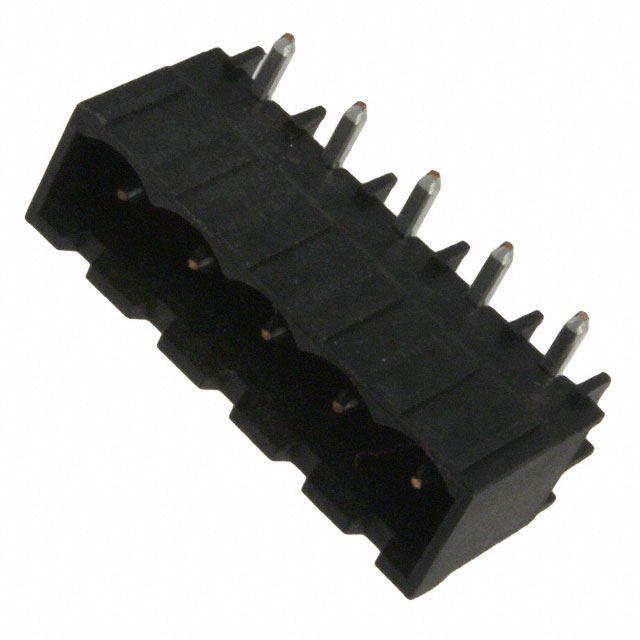

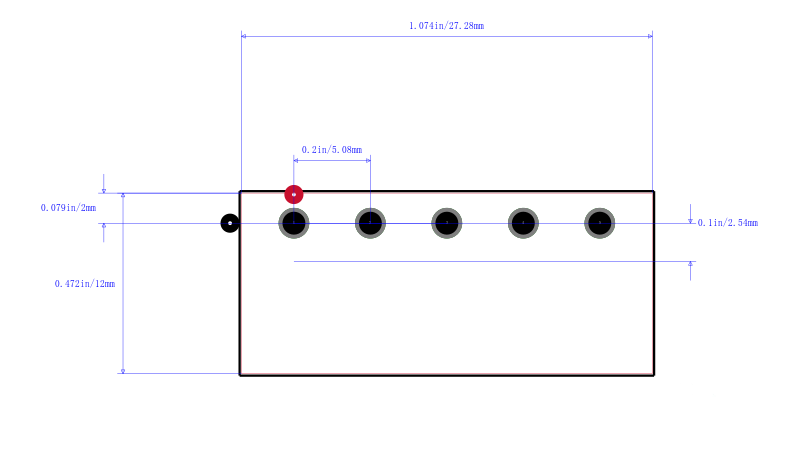

Use this shrouded 1776038-5 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin. It has a right angle body orientation. Its pitch is 5.08 mm. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 300 VAC. This device has a maximum current rating of 15 A/contact. 1776038-5 is housed in black nylon|polyester. It uses the solder termination method. This product is 27.28 mm long, 8.65 mm tall and 12 mm deep.
安富利:
Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole
Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 5.08mm Solder RA Thru-Hole
Powell:
Terminal Block Connectors
Online Components:
5P 5.08 R/A HDR,CLOSED END
Electro Sonic:
5P 5.08 R/A HDR,CLOSED END
