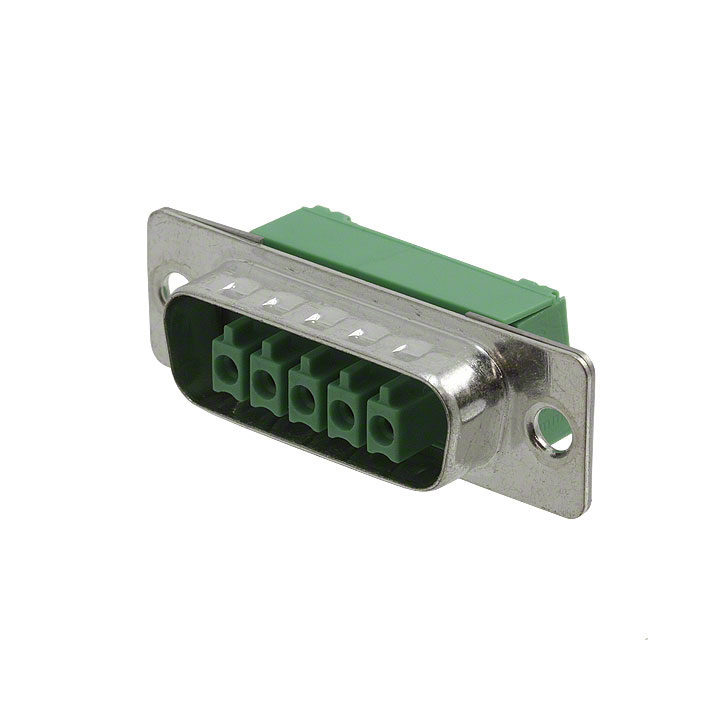

Conn Terminal Block F 5POS 3.5mm Screw RA Panel Mount 8A
**Power-Subconnec removable power supply terminal block, 3.5 mm Gage**
**Featured List:**

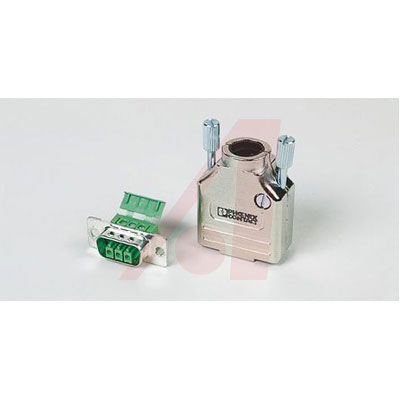

* Socket Power-Subconnec connectors combine the principle of Miniconnec connectors with the interference immunity and geometric properties of Sub-D connectors.
* Power-Subconnec 3 and 5 point connectors have the same dimensions as Sub-D 9 and 15 point connectors, respectively.
* Covers are available separately.
得捷:
TERM BLOCK PLUG 5POS STR 3.5MM
欧时:
SUBCONNEC CONNECTORS
艾睿:
Never worry about wires becoming undone by implementing this 1841912 PCB terminal block developed by Phoenix Contact. This F connector has 5 contacts that are plated with tin. It has a right angle body orientation. It has a female type gender. Its pitch is 3.5 mm. It has a maximum voltage rating of 300 V. This is a 1-row connector. This device has a maximum current rating of 8 A. 1841912 is housed in polyamide. This product is 39.2 mm long, 12.5 mm tall and 16 mm deep. Its wire is 16-28 AWG. It uses the screw termination method.
Allied Electronics:
3.5mm Pitch 5 Way Straight Female Wire Wrap D-sub Connector, 8A
Verical:
Conn Terminal Block F 5 POS 3.5mm Screw RA Panel Mount 8A
MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - number of positions: 5 - pitch: 3.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 5 POS 3.5mm Screw RA Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - ...
