1776126

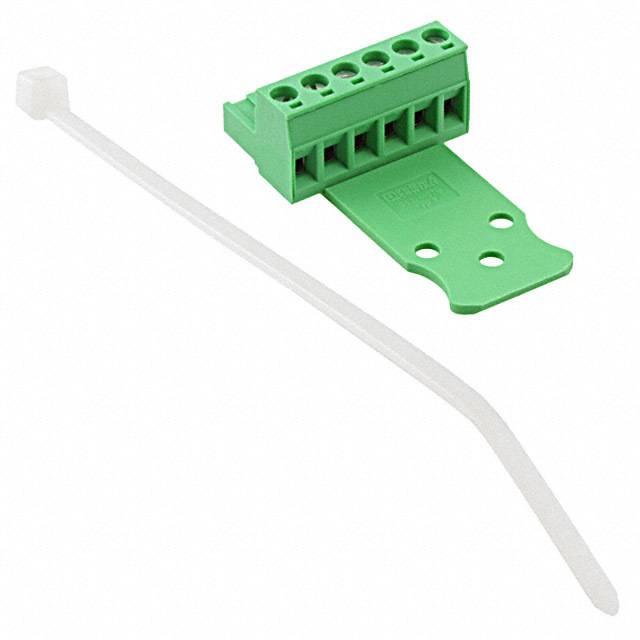

Phoenix Contact MSTB 系列 6路 5.08mm节距 母 印刷电路板接线端子块 1776126, 螺钉端接

6 针位端子块 插头，母插口 0.200"（5.08mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 6POS STR 5.08MM

艾睿:
Never worry about wires becoming undone by implementing this 1776126 PCB terminal block developed by Phoenix Contact. This F connector has 6 contacts that are plated with tin. Its pitch is 5.08 mm. It has a female type gender. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a right angle body orientation. 1776126 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. It uses the screw termination method. This product is 30.48 mm long and 52.2 mm.

Verical:
Conn Terminal Block F 6 POS 5.08mm Screw RA 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 6 POS 5.08mm Screw RA 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
