1828498

可插拔接线端子 2 Pos 3.81mm pitch Plug 28-16 AWG Screw

Conn Terminal Block F 2 POS 3.81mm Screw ST Panel Mount 8A

得捷:
TERM BLOCK PLUG 2POS 3.81MM

立创商城:
3.81mm 排数:1 每排P数:2

贸泽:
可插拔接线端子 2 Pos 3.81mm pitch Plug 28-16 AWG Screw

艾睿:

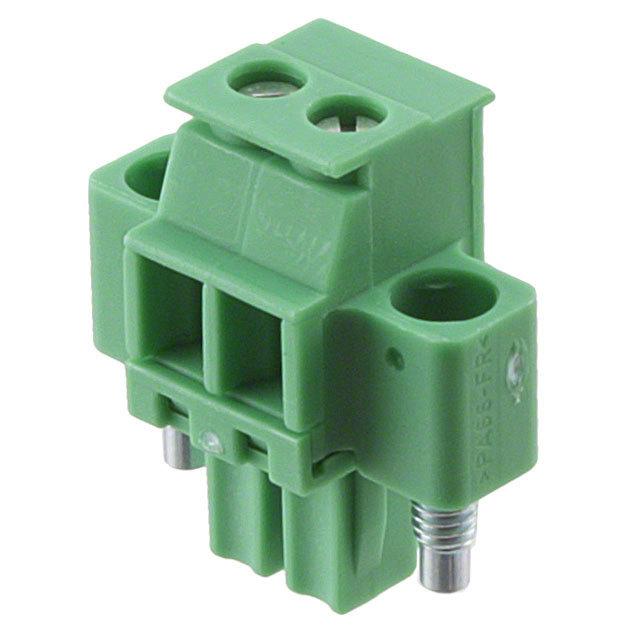

Connecting one or more circuits together, this 1828498 PCB terminal block from Phoenix Contact is a must-have! This F connector has 2 contacts that are plated with tin. This is a 1-row connector. It has a straight body orientation. It has a female type gender. Its pitch is 3.81 mm. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. 1828498 is housed in polyamide. Its wire is 16-28 AWG. It uses the screw termination method. This product is 18.01 mm long, 19.1 mm tall and 10.4 mm deep.

Allied Electronics:
Plug component; 8A; 160 V; Pos: 2; Screw conn; green

Verical:
Conn Terminal Block F 2 POS 3.81mm Screw ST Panel Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 2 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 2 POS 3.81mm Screw ST Panel Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
