1714977概述

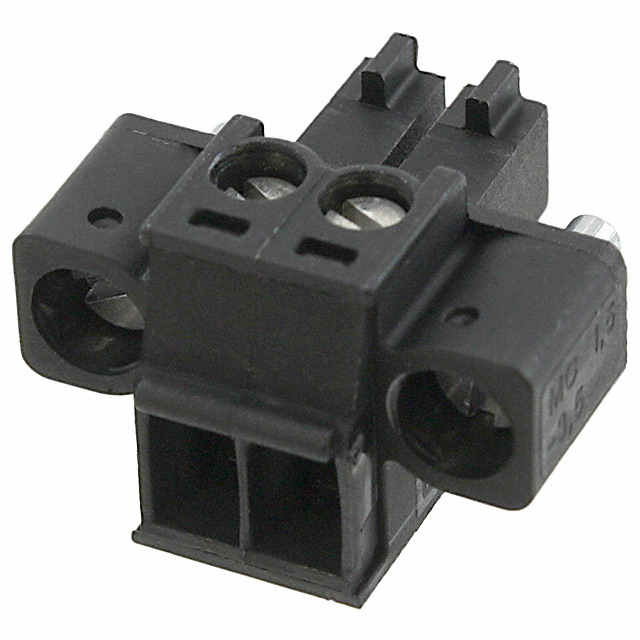

Conn Terminal Block F 2POS 3.5mm Screw 8A

2 针位端子块 插头,母插口 0.138"(3.50mm) - 180° 自由悬挂


得捷:
TERM BLOCK PLUG 2POS STR 3.5MM


欧时:
PCB terminal block, plug header, 2 way


贸泽:
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Plug 28-16 AWG Screw


艾睿:
Never worry about wires becoming undone by implementing this 1714977 PCB terminal block developed by Phoenix Contact. This F connector has 2 contacts that are plated with tin. It has a maximum voltage rating of 160 V. It has a female type gender. Its pitch is 3.5 mm. This device has a maximum current rating of 8 A. It uses the screw termination method. Its wire is 14-30 AWG.


Allied Electronics:
Terminal Block PLUG 2POS STR 3.5MM


Verical:
Conn PC Terminal Block F 2 POS 3.5mm Screw 8A


MASTER:
Conn PC Terminal Block F 2 POS 3.5mm Screw 8A


Online Components:
Conn PC Terminal Block F 2 POS 3.5mm Screw 8A


Electro Sonic:
Conn PC Terminal Block F 2 POS 3.5mm Screw 8A


1714977中文资料参数规格
技术参数

触点数 2

线规 14AWG ~ 30AWG

触点电镀 Tin

额定电流 8 A

排数 1

电路数 2

针脚数 2

额定电流Max 8 A

额定电压Max 160 V

额定电压 160 V

工作电压Max 160 V

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买1714977
型号: 1714977
描述:Conn Terminal Block F 2POS 3.5mm Screw 8A
