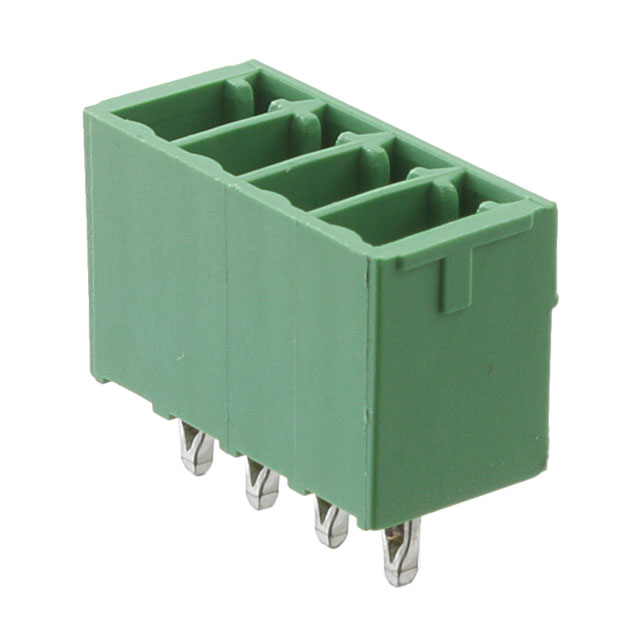

Phoenix Contact PCB 接线端子块 COMBICON EMCV 系列 4路 3.5mm节距 1911033, 压配合端接, 8A
4 针位端子块 接头，公引脚，带罩（4 面） 0.138"（3.50mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 4POS VERT 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON EMCV 系列 4路 3.5mm节距 1911033, 压配合端接, 8A
贸泽:
可插拔接线端子 4 Pos 3.5mm pitch Press In Header
艾睿:
Reduce safety concerns with this shrouded 1911033 header connector from Phoenix Contact which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector has 4 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.5 mm. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 15.4 mm long, 9.2 mm tall and 7.25 mm deep. 1911033 is housed in green polybutylene terephthalate.
Verical:
Conn Shrouded Header 4 Sides HDR 4 POS 3.5mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 4 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Press-in technology - pin layout: Linear pinning - solder pin [P]
Online Components:
Conn Shrouded Header HDR 4 POS 3.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
