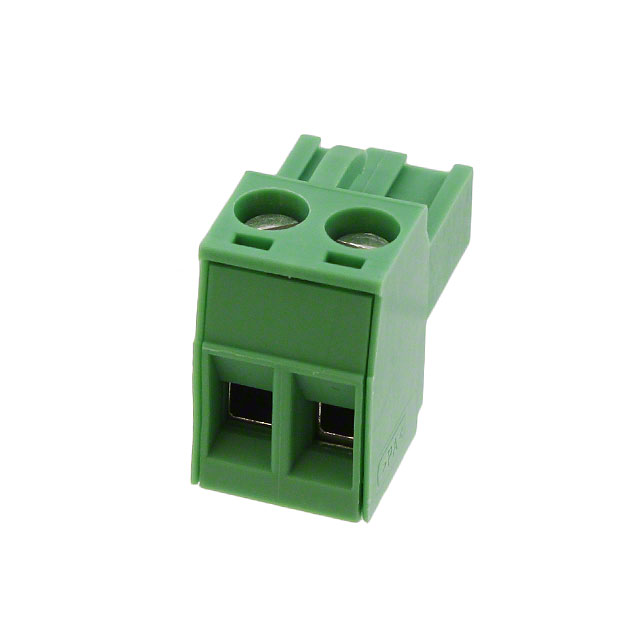

1779987

可插拔接线端子 2 Pos 5.08mm pitch Plug 24-12 AWG Screw

Contact CLASSIC COMBICON MSTBT 5.08mm Terminal Block Plug Connectors

得捷:
TERM BLOCK PLUG 2POS STR 5.08MM

贸泽:
可插拔接线端子 2 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
This 1779987 PCB terminal block manufactured from Phoenix Contact will connect wires together. This F connector has 2 contacts that are plated with tin. It has a female type gender. This is a 1-row connector. Its pitch is 5.08 mm. It has a right angle body orientation. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. 1779987 is housed in polyamide. This product is 10.16 mm long, 15 mm tall and 18.2 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.

Allied Electronics:
COMBICON MSTBT Series 5.08mm Pitch Straight Pluggable Trm Blk; Plug w/ Screw Term

Verical:
Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
