PTPM 和 PTSM 插头连接器管座，适用于 THR 应用适合与 PTPM 连接器一起使用，请参见典型库存号 712-4447 适合与 PTSM 连接器一起使用，请参见典型库存号 712-4471 ### 2.5 mm 推入式支脚弹簧 - Phoenix Contact
Contact COMBICON PTSM 2.5mm 印刷电路板端子块管座
PTSM 系列的专业 2.5 mm 节距管座，在具有空间限制问题时提供紧凑且可靠的连接。
2.5 mm 节距
板对板
通孔安装
提供各种位置
白色
### Phoenix Contact COMBICON 2.5mm 两件式端子块
得捷:
TERM BLOCK HDR 2POS VERT 2.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON PTSM 系列 2路 2.5mm节距 1排 直向 1778557, 焊接端接, 6A
立创商城:
1778557
贸泽:
Pluggable Terminal Blocks PTSM 0,5/ 2-HV-2,5 THR R32
艾睿:

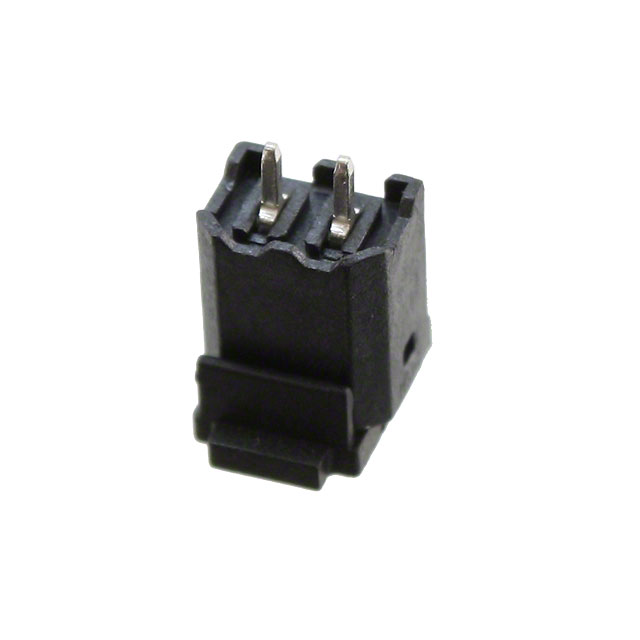

As an added safety precaution, the shrouded 1778557 header connector from Phoenix Contact will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector has 2 contacts that are plated with tin. It has a header type gender. Its pitch is 2.5 mm. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 6 A. This product is 6.7 mm long, 7.5 mm tall and 5 mm deep. It uses the solder termination method. 1778557 is housed in black liquid crystal polymer.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; SMT; Sldr; 2Pole; 2.5mmPitch; COMBICONSeries
Verical:
Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole T/R
MASTER:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - number of positions: 2 - pitch: 2.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 2 mm
Online Components:
Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole T/R
Electro Sonic:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...
