PTPM 和 PTSM 插头连接器管座，适用于 THR 应用适合与 PTPM 连接器一起使用，请参见典型库存号 712-4447 适合与 PTSM 连接器一起使用，请参见典型库存号 712-4471 ### 2.5 mm 推入式支脚弹簧 - Phoenix Contact
Contact COMBICON PTSM 2.5mm 印刷电路板端子块管座
PTSM 系列的专业 2.5 mm 节距管座，在具有空间限制问题时提供紧凑且可靠的连接。
2.5 mm 节距
板对板
通孔安装
提供各种位置
白色
欧时:

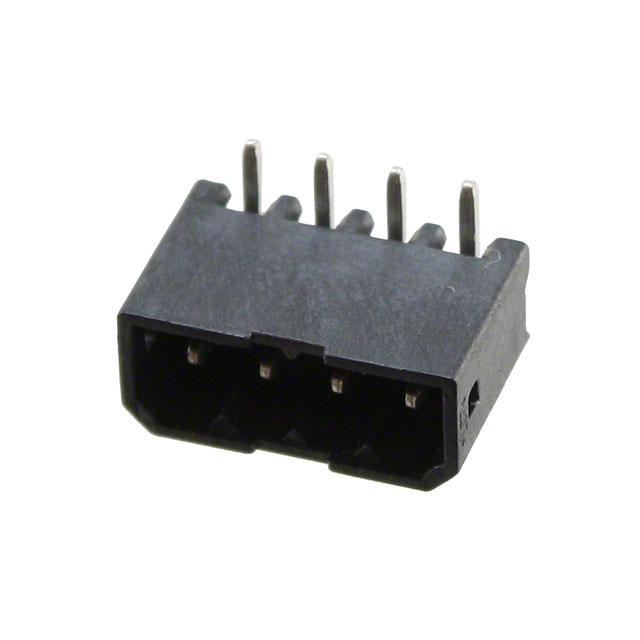

Phoenix Contact PCB 接线端子块 COMBICON PTSM 系列 4路 2.5mm节距 1排 直角 1778641, 焊接端接, 6A
得捷:
TERM BLOCK HDR 4POS 90DEG 2.5MM
艾睿:
Easily mount this shrouded 1778641 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 4 contacts that are plated with tin. It has a right angle body orientation. Its pitch is 2.5 mm. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 6 A. This product is 11.7 mm long, 5 mm tall and 7.5 mm deep. It uses the solder termination method. 1778641 is housed in black liquid crystal polymer.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; SMT; Sldr; 4Pole; 2.5mmPitch; COMBICONSeries
Verical:
Conn Shrouded Header HDR 4 POS 2.5mm Solder RA Thru-Hole T/R
MASTER:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - number of positions: 4 - pitch: 2.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 2.1
Online Components:
Conn Shrouded Header HDR 4 POS 2.5mm Solder RA Thru-Hole T/R
Electro Sonic:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...
