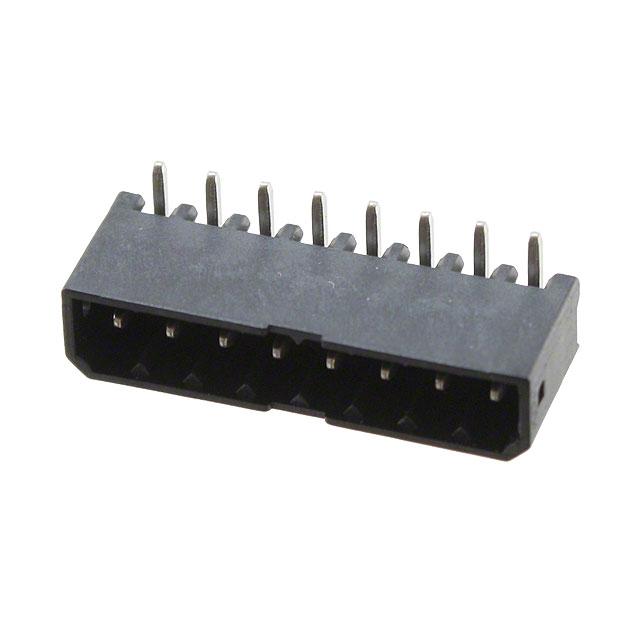

Conn Shrouded Header HDR 8POS 2.5mm Solder RA Thru-Hole
Pluggable Miniature Connectors
The PTSM and PTPM connector systems provide for reliable, compact connections and are ideal for any situation with space limitations.
**Features:
**
* Capable of Through-Hole-Reflow and True Surface Mount
* Surface Mount Headers Works with Metal Core Boards MCBs Prevalent in the LED Lighting Industry
得捷:
TERM BLOCK HDR 8POS 90DEG 2.5MM
艾睿:
Mounting this shrouded 1778683 header connector from Phoenix Contact to your printed circuit board can help you support multiple physical configuration options. This HDR connector has 8 contacts that are plated with tin. Its pitch is 2.5 mm. It has a right angle body orientation. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 6 A. 1778683 is housed in black liquid crystal polymer. This product is 21.7 mm long, 5 mm tall and 7.5 mm deep. It uses the solder termination method.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; SMT; Sldr; 8Pole; 2.5mmPitch; COMBICONSeries
Verical:
Conn Shrouded Header HDR 8 POS 2.5mm Solder RA Thru-Hole T/R
MASTER:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - number of positions: 8 - pitch: 2.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 2.1
Online Components:
Conn Shrouded Header HDR 8 POS 2.5mm Solder RA Thru-Hole T/R
Electro Sonic:
PCB headers - nominal current: 6 A - rated voltage III/2: 160 V - nominal cross section: 0.5 mm² - ...
