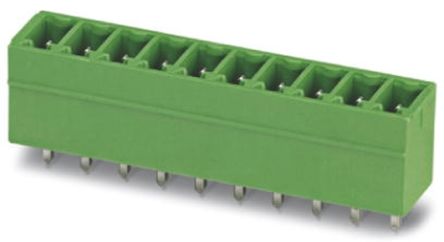

Phoenix Contact 微型 COMBICON MCV 3.81mm 印刷电路板端子块管座MINI COMBICON MCV 3.81mm 节距单层垂直安装有罩印刷电路板通孔安装端子块管座或薄型引脚条,具有紧凑型节距。 前缀为 18306 和 18307 的 MCV 部件号具有螺纹法兰。 有关标记标签,请参见库存号 648-5508### Phoenix Contact MINI-COMBICON 3.81mm 两件式端子块3.81mm 节距薄型互连系统,能节省印刷电路板空间,并能广泛接受 1.5mm2 电线的连接。 螺钉(上升钳位)和弹簧笼选件 螺钉接线端子铜含量高 >85% 仅 8mm 高于板上 额定电流 | 8A ---|--- 电压额定值 | 160V 导线接受范围 | 28-16 awg 绝缘材料 | 聚酰胺 6.6 Krilen 螺纹规格 | M2 易燃性等级 | UL 94 V-0
Contact MINI COMBICON MC 和 MCV 系列 3.81mm 单级印刷电路板端子块管座

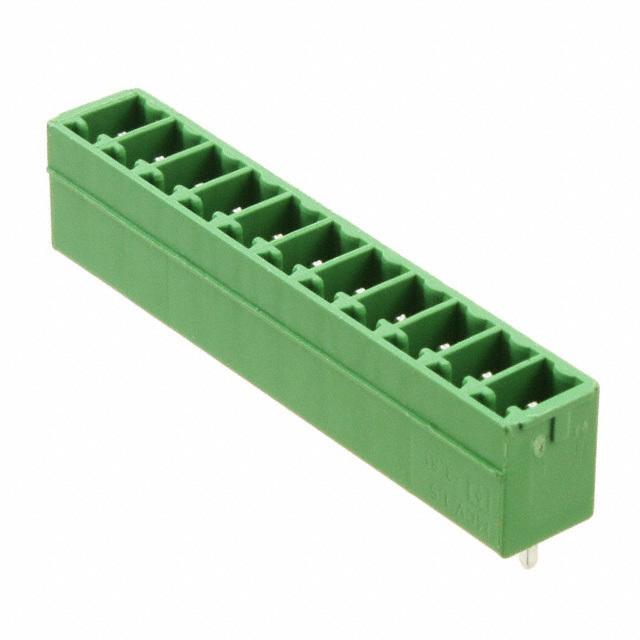

MINI COMBICON MC 和 MCV 系列单级薄型直角印刷电路板通孔安装有罩端子块管座,带紧凑型 3.81mm 节距和插入式引脚。这些 MINI COMBICON 端子块提供螺纹法兰和锁定及释放机制。
有关标记卡,请参见库存号 648-5508
有关配接锁定和释放插头,请参见库存号 220-4658(典型)
得捷:
TERM BLOCK HDR 11POS VERT 3.81MM
欧时:
MCV 1,5/11-G-3,81 3.81mm 11 way Header
贸泽:
Pluggable Terminal Blocks 11 Pos 3.81mm pitch Through Hole Header
艾睿:

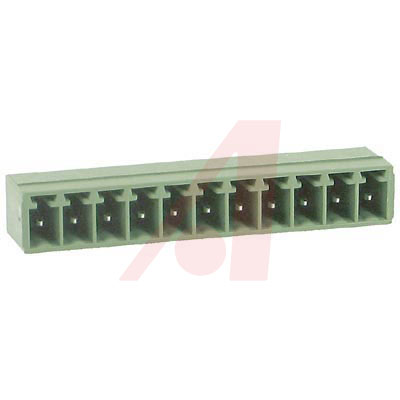

Easily mount this shrouded 1803510 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 11 contacts that are plated with tin. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 160 V. It has a header type gender. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. It uses the solder termination method. 1803510 is housed in green polybutylene terephthalate. This product is 43.3 mm long, 9.2 mm tall and 7.25 mm deep.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 11Pole; 3.81mmPitch; COMBICON
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 11 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 11 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
触点数 11
触点电镀 Tin
额定电压DC 640 mV
额定电流 8 A
排数 1
易燃性等级 UL 94 V-0
针脚数 11
安装角度 180 °
额定电流Max 8 A
额定电压Max 160 V
额定电压 300 V
安装方式 Through Hole
封装 无
引脚间距 3.81 mm
长度 7.25 mm
宽度 7.25 mm
高度 7.25 mm
封装 无
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
