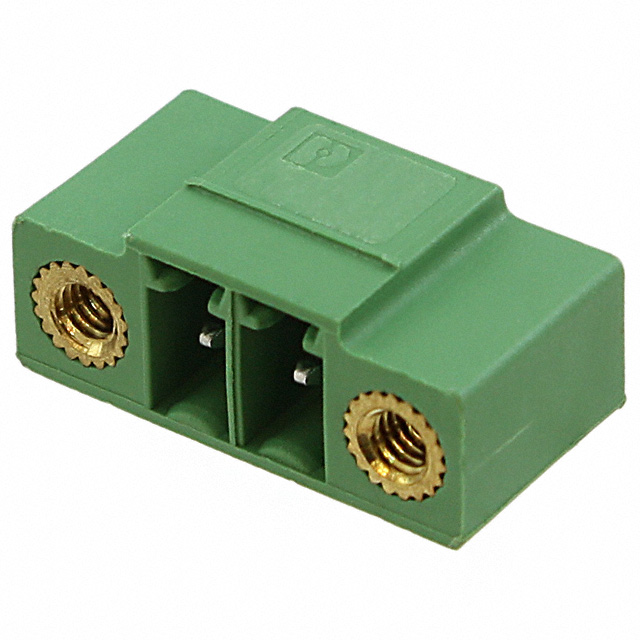

Phoenix Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制
### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
得捷:
TERM BLOCK HDR 2POS 90DEG 3.5MM
立创商城:
3.5mm 排数:1 每排P数:2
贸泽:
可插拔接线端子 2 Pos 3.5mm pitch Through Hole Header
艾睿:
This wire to board 1843790 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector has 2 contacts that are plated with tin. It has a right angle body orientation. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. It has a header type gender. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 17.35 mm long, 7.25 mm tall and 9.2 mm deep. 1843790 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 2 POS 3.5mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 2 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4
Online Components:
Conn Wire to Board HDR 2 POS 3.5mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
触点数 2
触点电镀 Silver
额定电流 8 A
排数 1
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 8 A
额定电压Max 160 V
额定电压 250 V
安装方式 Through Hole
封装 -
长度 9.2 mm
宽度 17.35 mm
高度 7.25 mm
封装 -
外壳颜色 Green
颜色 Green
触点材质 Tin
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
